HR-150DTS Rockwell Hardness Tester 150kgf 1471N

HR-150DTS Rockwell Hardness Tester 150kgf 1471N

HR-150DTS Rockwell Hardness Tester 150kgf 1471N
HR-150DTS Rockwell Hardness Tester 150kgf 1471N HR-150DTS Rockwell Hardness Tester 150kgf 1471N HR-150DTS Rockwell Hardness Tester 150kgf 1471N

Large Image :  HR-150DTS Rockwell Hardness Tester 150kgf 1471N Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate Of Compliance
Model Number: HR-150DTS
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 3-8 work days
Payment Terms: T/T
Detailed Product Description
Hardness Value Display: Digital Display Screen Automatic Completion: Apply Pressure, Hold Pressure, Unload Pressure
Data Output: With Built-in Printing Function, Can Be Connected To A Computer Or A Mini Printer In Series
High Light:

HR-150DTS Rockwell Hardness Tester


150kgf Rockwell Hardness Tester


1471N rockwell c hardness tester

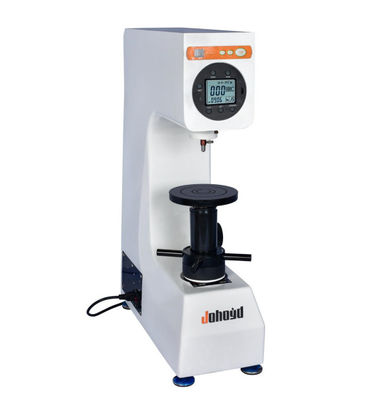

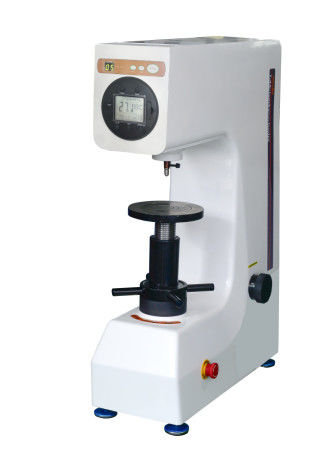

Electric Digital Display Rockwell Hardness Tester (HR-150DTS)

  The electric digital display Rockwell hardness tester adopts an automatic loading and unloading test force mechanism, and the test force conversion is obtained by the rotation of the variable load handwheel;The operation is simple and fast, no need for dial to zero, direct digital display, no man-made operation error, high sensitivity and stability; suitable for workshops and laboratories. It has been widely used in all walks of life.


Main features and features:

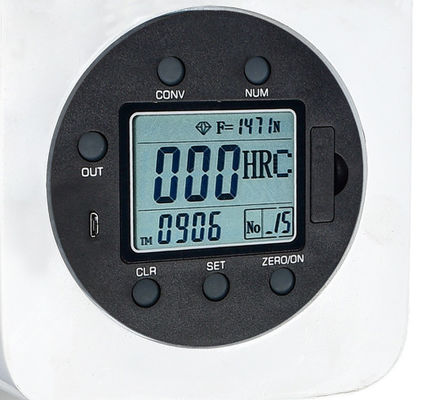

1. The hardness value can be read directly through the digital display screen with a resolution of 0.1, and the measured result is higher than the national standard;

2. It can directly convert HV and HB hardness units;

3. Very low power consumption, long use time, digital display meter head adopts CR2450 battery power supply;

4. With time display function;

5. With data output function, it can be connected to an external computer or a mini printer in series;

6. The shell is made of one-time molding and casting by a special sand-finding process, the structure is stable and does not deform, and it can work in a relatively harsh environment; the car paint has high grades, strong scratch resistance, and it is still bright as new after years of use;

7. Test force: applying, holding and unloading are automatically completed;

8. We have the ability to develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life.




Main use and scope of application:

1. Hardened steel, quenched and tempered steel, annealed steel, bearing steel, strip steel, hardened steel sheet, hard alloy, etc.


technical parameter::

Product model HR-150DTS
Initial test force 10kgf(98.07N)
test force 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Measuring range HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77
HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100
Data output Digital disply
Executive standard GB/T230.1 GB/T230.2 JJG112
Maximum height of the test piece 230mm
Indenter-outer wall distance 165mm
power supply AC220V+5%,50~60Hz
Dimension (mm) 520*240*700
Host weight Around 70Kg


HR-150DTS Rockwell Hardness Tester 150kgf 1471N 0


Part name Quantity Part name Quantity
Diamond rock indenter 1 piece 1.5875mm ball indenter 1 piece
Rockwell hardness block 3 blocks Large, medium and V-type test benches 1 each
screwdriver 1 Dustproof plastic cover 1 piece
Power supply 1 line fuse 2 piece
Product instructions manual 1 piece Attachment box 1 piece
