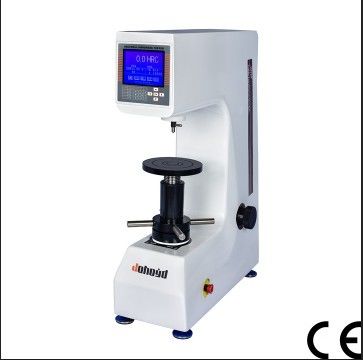

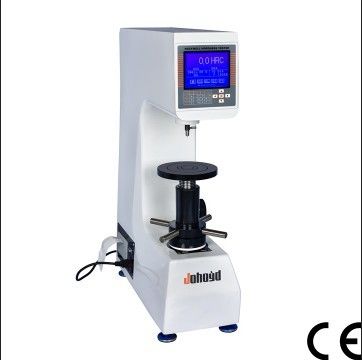

Automatic Rockwell Hardness Tester Digital Display HRS-150
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Hardness Value Display: | Large LCD Display | Data Output: | With Built-in Printing Function, Can Be Connected To A Computer Or A Mini Printer In Series |
|---|---|---|---|
| Automatic Completion: | Apply Pressure, Hold Pressure, Unload Pressure | ||
| High Light: | Automatic Rockwell Hardness Tester,Digital Display Rockwell Hardness Tester,HRS-150 rockwell hardness testing machine |
||
The HRS-150 digital display automatic Rockwell hardness tester has novel appearance, interface menu, measuring device adopts grating sensor and computer control, and the hardness indication value is directly displayed on the liquid crystal screen as a mechanical and electrical integration hardness testing instrument.
The machine can automatically convert various hardness parameters to each other to identify the minimum thickness of the test piece and the ambient temperature of the test. Built-in printer to read the relevant test results. Automated operation is eliminated, eliminating human error and reading errors
.
Main functions and features:
1. Directly display the test hardness value through the large LCD screen;
2. The shell is made of one-time molding and casting by a special sand-finding process, with a stable structure and no deformation, and can work in a relatively harsh environment; the car paint has high grades, strong scratch resistance, and it is still bright as new after many years of use;
3. We have the ability to develop, design, produce and process by ourselves, and provide parts replacement and maintenance and upgrade services for the machine for life;
Main purpose and scope of application:
Cast and forged parts · Sample testing and acceptance testing
Planar and cylindrical workpieces ·Steel, non-ferrous metals
Automotive and aerospace industry ·Carbide, ceramic, stainless steel
Laboratory and workshop
Main technicial parameters:
| Parameters name | Parameters data |
| Intial test force(N) | 10kgf(98.07N) allowable error ±2.0% |
| Total test force(N) | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Rockwell ruler | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK |
| Inspection standard | GB/T230.1 GB/T230.2national standard JJG112 vertification procedure ASTM E18 |
| accuracy | 0.1HR |
| Durating time(s) | 1-60 |
| Hardness reading | LCD |
| Max height of the test piece (mm) | 230 |
| Intender center to body distance(mm) | 165 |
| Hardness tester dimension(mm) | 520×240×720 |
| Power supply | 220V/50HZ |
| Tester weight(kg) | 70 |
| Hardness measuring range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-94 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-110 HRR:114-125 |
packinglist:
| NO. | Name(specification) | Quantity |
| 1 | 金刚石洛氏压头Dianmond rockwell indenter | 1 |
| 2 | φ1.5875mmball indenter | 1 |
| 3 | Large ,medium and V-type test beanches | 3 total |
| standard rockwell hardness blocks | 3 piece | |
| 4 | HRB | 1 |
| 5 | HRC high,low | 2 total |
| 6 | fuse 2A | 2 |
| 7 | Power supply | 1 |
| 8 | RS-232communication line | 1 |
| 9 | Weight A,B,C | 3 total |
| 10 | Proof plastic cover | 1 |
| 11 | Product certificate manual | 1 |
| 12 | Printer paper,printer instruction manual | 1 each |
| 13 | product instruction manual | 1 |
