Pointer Plastic XHR-150A Rockwell Hardness Tester 60kgf
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Hardness Reading: | Pointer Dial Reading | Rocker Ruler: | HRE、HRM、HRL、HRR、HRF、HRG、HRH、HRK |
|---|---|---|---|
| Test Force: | 60kgf、100kgf、150kgf | ||
| High Light: | XHR-150A Rockwell Hardness Tester,60kgf Rockwell Hardness Tester,Pointer Plastic rockwell hardness machine |
||

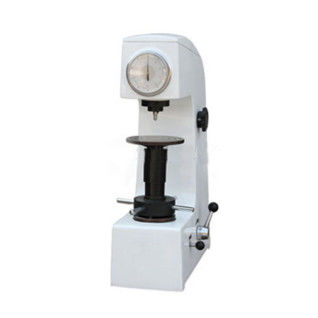

Pointer plastic Rockwell hardness tester(XHR-150A)
The manual plastic Rockwell hardness tester is stable and reliable, and is a popular Rockwell machine.
Mechanical manual testing, no power required;
Wide application range, easy operation, good economy and practicality.
Main features and features:
1,The hardness value is directly read by the dial pointer, the pointer is sensitive, and the measured result is higher than the national standard;
2,The shell is formed by a special sand-casting process. The structure is stable and not deformed, and it can work in a harsh environment. The car paint has high grade and strong scratch resistance. It is still bright and new for many years.
3,We have the ability to develop and design, manufacture and process our own machines. Our machines provide replacement and maintenance upgrades for life.
Main use and scope of application:
Laboratory and workshop non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals
technical parameter:
| Product number | XHR-150A |
| Initial test force | 10kgf(98.07N) |
| Total test force (N) | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Rocker Ruler | HRE,HRM,HRL,HRR,HRF,HRG,HRH,HRK |
| Hardness test range | HRD:40-77 HRE:70-94 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-110 HRR:114-125 |
| Data output | Dial reading |
| Inspection standards | GB/T230.1 GB/T230.2 Chinese Standard JJG112 Inspection Rule |
| Maximum height of test piece (mm) | 170mm |
| Indenter - outside wall distance (mm) | 135mm |
| Dimensions (mm) | 466×238×630mm |
| Instrument weight (kg) | About 65kg |
Packing List
| Name | quantity | Name | quantity |
| φ3.175mm Ball indenter | 1 | φ6.35mm Ball indenter | 1 |
| φ12.7mm Ball indenter | 1 | Standard plastic Rockwell hardness block HRE, | 1 |
| Standard plastic Rockwell hardness block HRL | 1 | Standard plastic Rockwell hardness block HRM | 1 |
| Standard plastic Rockwell hardness block HRR | 1 | Large workbench | 1 |
| Medium workbench | 1 | V workbench | 1 |
| Big and small screwdriver | 1 | Dustproof plastic cover | 1 |
| Instruction Manual | 1 | Product certification | 1 |
