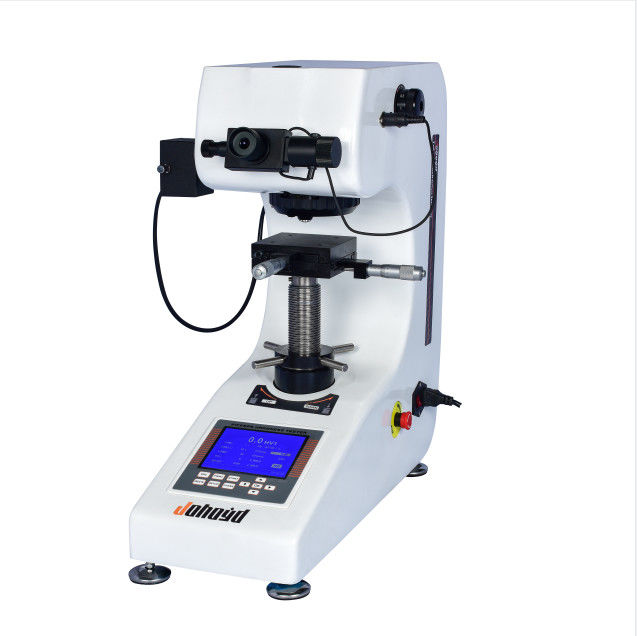

Automatic HV0.01 Micro Vickers Hardness Tester HVS-1000Z Large Screen

Automatic HV0.01 Micro Vickers Hardness Tester HVS-1000Z Large Screen

Automatic HV0.01 Micro Vickers Hardness Tester HVS-1000Z Large Screen
Automatic HV0.01 Micro Vickers Hardness Tester HVS-1000Z Large Screen

Large Image :  Automatic HV0.01 Micro Vickers Hardness Tester HVS-1000Z Large Screen Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate Of Compliance
Model Number: HVS-1000Z
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Detailed Product Description
Display: LCD Large Screen Objective Lens Indenter Conversion: Automatic
Micrometer Eyepiece: Digital Display
High Light:

HV0.01 Micro Vickers Hardness Tester


HVS-1000Z HV0.01 Automatic Micro Vickers Hardness Tester


HV0.01 HVS-1000Z micro hardness tester

Digital Display Automatic Turret Type Microhardness Tester (HVS-1000Z Large Screen)


Digital automatic turret type micro hardness tester can meet the basic Vickers hardness test requirements. The upgraded digital micrometer eyepiece can directly read the measurement length, so that the measurement value can be obtained more quickly and accurately. The tower can automatically switch the eyepiece and indenter to avoid artificial errors and damage the instrument, and also greatly improve the efficiency. LCD large-screen display facilitates observation, test conditions, and the test process is straightforward

Main functions and features:

1.The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, and it is visually comfortable. Long-time operation is not easy to fatigue operators.
2. Industrial display LCD large-screen display can display test method, test force, measuring indentation length, hardness value, converted hardness value, test force holding time, number of measurements and can be typed into year, month, date, test results and data processing, etc.
3. Cast aluminum shell molding, with stable structure and is not easy to be deformed, pure white car paint high grade, anti-scratch ability, using for many years is still bright as new;
4. Our company has the ability of self-developing, designing, producing and processing. The machine provides parts replacement and maintenance upgrade service for life;
5. HVS-1000Z model can be realistic: the length of the measurement directly confirms the hardness value.
6. The HVS-1000Z model can be realized: observation-test-measurement position switching is done by the automatic turret.


The main purpose and scope of application:

1.Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafers, ceramic materials


Technical Parameters:

Parameter name Parameter data
Micro hardness scale HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display Holding time (seconds), hardness value
Test force (gf) 10,25,50,100,200,300,500,1000
Loading control Automatic (load/hold/uninstall)
Test force retention time (s) 5 ~60
Test force selection External selector knob, test force is automatically displayed on the LCD screen
Objective magnification 10×, 40×
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system 1.Automatic digital encoder;
2.The total magnification (μm): 100 × (observation), 400 × (measurement);
3.Measuring range (μm): 200;
4.Resolution (μm): 0.01
Hardness measurement range (5-3000) HV
XY test platform Size (mm): 100×100
Travel range (mm): 25×25
Minimum reading (mm): 0.01
Maximum height of specimen (mm) 110
Maximum width of specimen (mm) 85 (distance from the center line of the indenter to the wall)
Data output Reserve built-in mini printer interface (RS232 serial interface), optional installation
Voltage AC220V/50HZ
Weight (kg) 35
Dimensions (540×200×530)mm


Automatic HV0.01 Micro Vickers Hardness Tester HVS-1000Z Large Screen 0

Standard configuration:

1.Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1) 2.Test platform, weight, microscope accessory box;
3.Weights x6 4.Weight bar x1
5.Cross table x1 6.Sheet clamping table x1
7.Flat mouth clamping table x1 8.Filament holding table x1
9.Level meter x1 10.Screwdriver x2
11.Horizontal adjustment screws x4 12.External power cord x1
13.10× Digital Micrometer Eyepieces x1 14.Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each )
15.Fuses (1 A) x2 16.Product certification x1
17.Product Instruction Manual x1 18.Dust cover x1


1. The optional side-sway lifting system makes the lifting system more stable and accurate.
2. Optional built-in printer, measurement data, a key print, can also upload the computer.
3. Optional hardness meter measurement software can eliminate manual error, computer operation, improve efficiency and accuracy.
