10kgf Brinell Vickers And Rockwell Hardness Test HBS-62.5Z 220V

10kgf Brinell Vickers And Rockwell Hardness Test HBS-62.5Z 220V

10kgf Brinell Vickers And Rockwell Hardness Test HBS-62.5Z 220V
10kgf Brinell Vickers And Rockwell Hardness Test HBS-62.5Z 220V 10kgf Brinell Vickers And Rockwell Hardness Test HBS-62.5Z 220V

Large Image :  10kgf Brinell Vickers And Rockwell Hardness Test HBS-62.5Z 220V Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Model Number: HBS-62.5Z
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Detailed Product Description
Test Force: Level 6 Hardness Reading: 4 Inch Large Screen LCD Display
Data Output: Built-in Printer Observe The Indentation: Observation With Reading Microscope
Tower Rotation: Automatic
High Light:

10kgf brinell vickers and rockwell hardness test


Johoyd HBS-62.5Z brinell vickers and rockwell hardness test


Johoyd 220V brinell testing machine

Digital Display Automatic Turret Small Load Brinell Hardness Tester HBS-62.5Z

  The HBS-62.5 digital display small load Brinell hardness tester is a high-tech product of optical and mechanical integration. The machine is novel in shape, has good reliability, operability and intuitiveness. It is a new type of cloth using precision mechanical technology and photoelectric technology. 'S testing equipment. The machine adopts computer software programming and optical measurement system. Through the soft key input, you can choose different indenter and force value measurement, can adjust the strength of the measuring light source, can choose the dwell time, can display the indenter diameter, test force, measurement range, and direct reading on the screen on the LCD display. Find out the hardness value, simplifying the cumbersome look-up table. It is easy to use, and the measurement accuracy is higher due to the use of a rotary encoder. Because the Brinell hardness test uses a large pressure, the indenter ball diameter is large, and the indentation diameter is large, it is suitable for the hardness test of metal materials with large grains. Such as cast iron, non-ferrous metals and their alloys, various annealing and tempering treatments, and most of the steel materials supplied by the factory, etc., this instrument uses a relatively small part of the Brinell hardness value, so it is especially suitable for softer metals. Such as pure aluminum, copper, lead, tin, zinc, etc. and their alloys, the measured hardness is accurate. The hardness has high measurement accuracy, so the reproducibility and representativeness are good


Main functions and features:

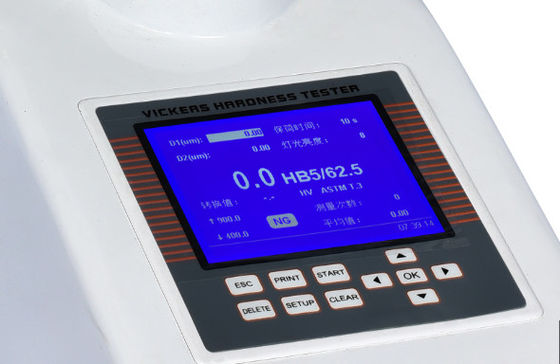

1. 4-inch large-screen LCD display, menu structure,

2. The test process is automated and easy to operate

3. High-definition optical system The brightness of the light source can be adjusted in 20 levels.

4. With the function of hardness value conversion, the upper and lower tolerance of hardness can be judged.

5. Diagonal length D1 and D2 encoder input, reduce human reading error.

6. The objective lens and the indenter can be automatically switched and positioned accurately.

7. Test results and data processing can be output through a printer.

8. The shell is casted at one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;

9. The surface is treated with the car paint process, which has strong scratching ability and is still bright as new after years of use;


Main purpose and scope of use:

1. It is suitable for the hardness tester test of metal materials with large grains, which can reflect the comprehensive performance of the material;

2. Cast iron, steel, non-ferrous metals, especially for softer metals, such as pure aluminum, lead, tin, etc.



Product number HBS-62.5
Test force 1, 5, 10, 15.625, 30, 62.5kgf

5-digit hardness value, 4-digit diagonal length (D1, D2),

Hold time, number of tests, average value, standard deviation, return

Test force retention time (s) 1~99
Load control automatic (load/hold/unload)
Conversion ruler Rockwell, Surface Rockwell, Vickers
The smallest unit of measurement 0. 25μm (subject to the selected objective lens)
Total magnification Objective lens: Observe or measure 5X measurement 10X (special objective lens please customize)Total magnification: 50X 100X
Data output Built-in printer
Maximum size of test piece Maximum height 165mm
Indenter center to inner wall 130mm
Executive standard Accuracy conforms to GB231.2, ISO6506-2 and ASTME10
power supply AC220V±5%, 50~60Hz
Instrument weight About 45kg
Standard accessories Objective lens 5x, 10x, Brinell indenter Φ1Φ2.5, Φ5 digital display measuring eyepiece 10x, large flat test bench, middle flat test bench, V-shaped test bench, hardness block (2), power cord, etc.
Optional accessories XY workbench, CCD measuring system.

10kgf Brinell Vickers And Rockwell Hardness Test HBS-62.5Z 220V 0


Name Quantity Name Quantity
Instrument host 1 Objective lens 5x, 10x 1 each
Digital measuring eyepiece 10x 1 Brinell indenter Φ1Φ2.5Φ5 1 each
Standard hardness block 2 Large, medium and V-type test benches 1 each
power cable 1 Product certificate, product instruction manual 1 each
fuse 2
Optional accessories XY table, CCD measurement system.
