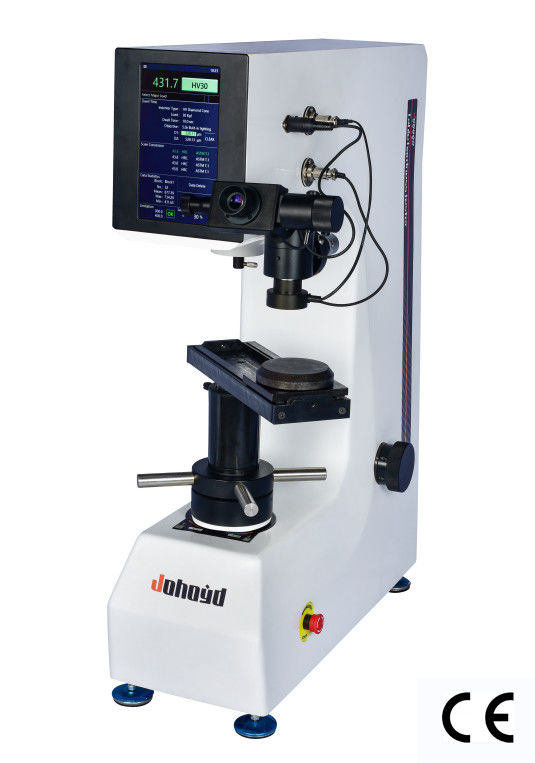

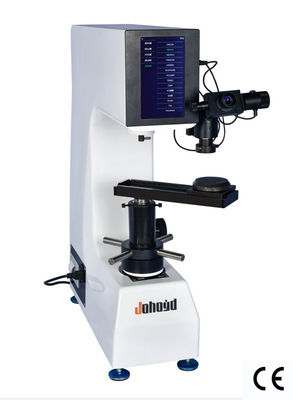

Touch Screen Brinell Hardness Tester HB1 HV30 60kgf

  The touch screen digital display Brouwer hardness tester has novel appearance, complete functions, convenient operation, clear and intuitive display and stable performance. It is a high-tech product integrating light, machine and electricity. It can perform three types of Brinell, Rockwell and Vickers. The test method is a multifunctional hardness tester equipped with a 23-level measuring scale, which can meet a variety of hardness testing needs. It has the characteristics of high test accuracy, simple operation, high sensitivity, convenient use and stable value. Equipped with a built-in printer, and an optional RS232 data line can be connected to a computer via a hyper terminal, or a U disk can export measurement reports. Large-screen LCD touch screen display interface, rich display content, easy to operate.

Main features of the instrument

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;

2. The 7-inch LCD touch screen can directly display the hardness value, the conversion hardness, the test method, the test force, the brightness, the holding time, the number of measurements, the statistical data, and the test time are intuitive and clear;

3. The system comes with a calibration function, which can manually adjust the input error calibration instrument;

4. When testing the curved surface, it is automatically corrected according to the standard curved surface radius;

5. Adjustable range of optical system brightness: 0-100;

6. 100 sets of test data can be stored, and the test data can be viewed at any time, and the current data can also be deleted or all test data can be cleared;

7. The test force unit can be manually selected for mutual conversion, the conversion unit is: (Kgf, N)

8. Simultaneous display: maximum value, minimum value, average value, number of tests, test block name (test block number can be input);

9. The main interface can display 4 conversion scales at the same time, and can switch: National Standard (GB), American Standard (ASTM) and International (ISO) Standards. A total of 21 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW, HS, HBS, HV, Rm (tensile strength), MPa (pressure);

10. With diagonal length memory function, the diagonal length will be automatically memorized after shutdown, and it will be measured directly after startup, without the need for secondary reset.

11. The upper and lower limit measurement range can be set, displayed on the main measurement interface, and the unqualified value will automatically prompt an alarm;

12. The operating system has 13 languages, which can be switched at will: Chinese, English, Russian, German, French, Spanish, Portuguese, Turkish, Czech, Japanese, Korean, Thai, Vietnamese;

13. It has three test methods of Brinell, Rockwell and Vickers, with eight levels of test force, which can meet various hardness test requirements;

14. Equipped with a built-in printer, test data can also be output to U disk via USB for saving and analysis;

15. The cast aluminum shell has a stable and non-deformed structure once formed, and the pure white car paint has a high level of scratch resistance. It is still bright as new after years of use;

16. Our company has the ability of self-developed design, production and processing. Our machines provide parts replacement and maintenance upgrade services for life;

The main purpose and scope of use of the instrument:

1. Determine the Brinell, Vickers and Rockwell hardness of ferrous metals, non-ferrous metals and cemented carbides:

2. Brinell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys;

3. Rockwell hardness of heat-treated materials such as quenching and quenching and tempering;

4. Vickers hardness of nitriding layer, ceramics, thin plates, metal flakes, electroplating layers, and small parts;

Detailed instrument parameters:

Instrument standard configuration:
