500kgf Brinell Hardness Tester 4903N 7355N 750kgf

500kgf Brinell Hardness Tester 4903N 7355N 750kgf

500kgf Brinell Hardness Tester 4903N 7355N 750kgf
500kgf Brinell Hardness Tester 4903N 7355N 750kgf 500kgf Brinell Hardness Tester 4903N 7355N 750kgf 500kgf Brinell Hardness Tester 4903N 7355N 750kgf

Large Image :  500kgf Brinell Hardness Tester 4903N 7355N 750kgf Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Model Number: HBE-3000S
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 3-8 work days
Payment Terms: T/T
Detailed Product Description

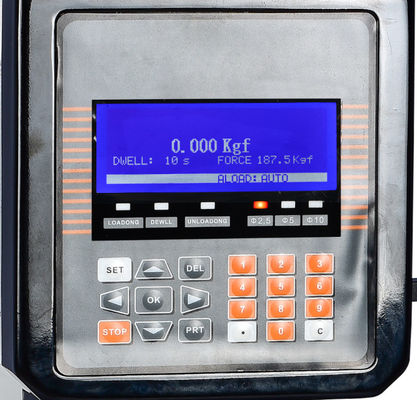

Test Force: Ten-level Test Force Data Output: Built-in Printer, Hyper Terminal.
Hardness Reading: Direct Measurement Via Computer
High Light:

500kgf Brinell Hardness Tester


4903N Brinell Hardness Tester


4903N 750kgf digital brinell hardness tester

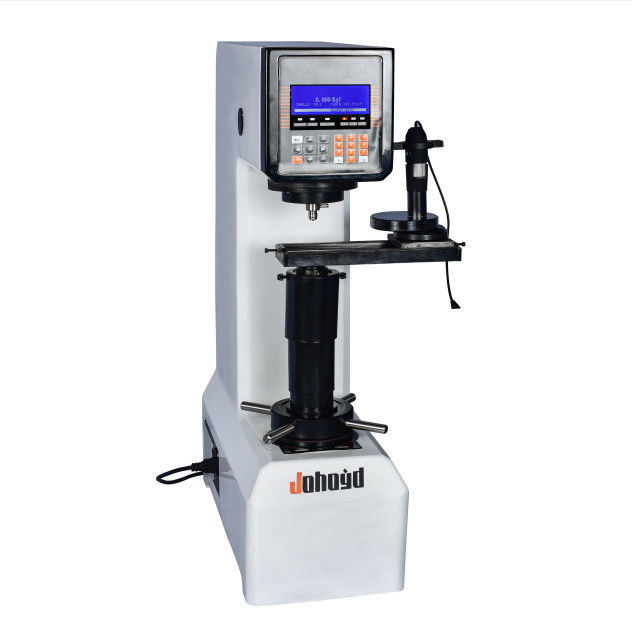

Computer Type Electronic Brinell Hardness Tester(HBE-3000S)

  HBE-3000S Computer Electronic Brinell hardness of advanced electronic technology load sensor, closed-loop control System, CPU control signals acquired by the sensor, the stepper motor automatically loading and unloading test force, and can automatically compensate the test force, to ensure the force The value is more accurate and the displayed value is more stable. Equipped with a mobile measurement platform and a computer measurement system, it has a high test speed and more measurement functions. It is also equipped with an emergency stop device, which meets the EU CE safety standards, has more reliable operability and safety, and has a high cost performance , Widely used in factory workshops, colleges and universities, scientific research institutions, laboratories, etc.etc


Main functions and features:


1. Equipped with precision sensors and CPU microcomputer control system, which can automatically compensate, and the test results are accurate and stable;

2. Possesses level 10 test capability, and can test a wider range;

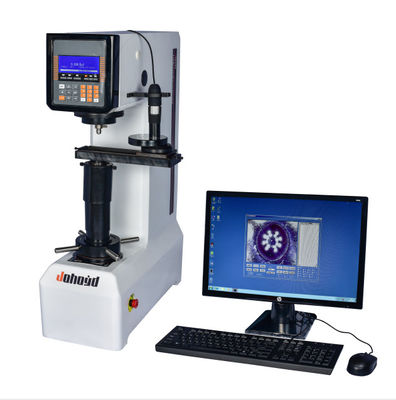

3. Equipped with a movable measurement platform and a computer measurement system, with a high test speed and more measurement functions;

4. Equipped with a high-performance stepper motor to automatically load and unload the test force, and the noise generated during the test is smaller;

5. The shell is cast at one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;

6. The surface is treated with the car paint process, which has strong scratching ability and is still bright as new after years of use;

7. This machine is equipped with Brinell image measurement software, which greatly improves work efficiency.


Main purpose and scope of use:


1. It is suitable for the hardness tester test of metal materials with large grains, which can reflect the comprehensive performance of the material;

2. Cast iron, steel, non-ferrous metals, alloys, especially for softer metals, such as pure aluminum, lead, tin, etc.;

3. It can be used to measure the hardness of some non-metallic materials such as hard plastics and bakelite;


Software introduction:

The Brinell hardness measurement and analysis system is a Brinell hardness measurement and analysis system designed using optical visual inspection technology and image analysis processing technology. The system collects the indentation through the optical system, and the software measures and analyzes the hardness, avoiding the influence of human factors and greatly improving the measurement efficiency and measurement accuracy. To


Open the software interface as follow:

500kgf Brinell Hardness Tester 4903N 7355N 750kgf 0



Button function introduction:

Local picture: you can open the local picture for measurement, the resolution is 640*480 bmp format picture

Image saving: the collected images can be saved, the resolution is 640*480 bmp format pictures

Dynamic collection: display the images collected by the camera in real time

Graphic lock: freeze the currently captured image

Image setting: you can adjust the color and other attributes of the image. If two cameras are installed, you can choose here. When using this software for the first time, please enter the image settings and adjust the camera resolution to 640*480

Magnifying glass: can digitally magnify the collected image

Ruler: Please select the test force and indenter diameter used for indentation before measurement

Calibration: use the hardness block to calibrate the current magnification, the calibration password is 11111

Delete: delete the selected row in the table on the right, if there is no selection, delete the last row

Export: Export all the data in the result table to excel

Issue report: Issue a printed report, fill in the data and save it automatically

Manual measurement: Manually measure the indentation. After clicking, the upper, lower, left, and right sides of the indentation are respectively stuck, and the hardness value is automatically calculated. For two-point measurement, only the upper and lower points need to be measured.

Automatic measurement: automatically measure the hardness result

Hardness conversion: The required hardness is automatically converted according to the American ASTM-E140 standard.

technical parameter:

Product number HBE-3000S
Brinell ruler HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100, HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Test force 62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N)
Load control Automatic (loading/loading/unloading)
Maximum height of the test piece 220mm
Minimum unit of measure 0.005mm
Time of protection 0~60s
Hardness test range 8~650HBW
Total magnification 20X
Executive standard EN ISO 6506, , ASTM E-10-08, GB/T231.2,JJG150 -2005
Indenter-outer wall distance 135mm
Indenter-upper wall distance 55mm (can increase the pressure from the indenter to the upper wall by customizing the indenter)
Hardness reading Direct measurement by computer
power supply AC220+5%, 50~60Hz
Dimensions (mm) 520*210*745mm
Host weight About 120kg
500kgf Brinell Hardness Tester 4903N 7355N 750kgf 1


Name Quantity Name Quantity
Standard hardness block 3 2.5, 5, 10mm diameter carbide ball indenter 1 each
power cable 1 Product certificate, product instruction manual, Brinell comparison table 1 each
fuse 2 Dust cover 1
Mobile measurement platform 1 Measurement system (software, camera, acquisition box, connecting line, etc.) 1
