4 Samples Metallographic Mounting Press 4KW 220V

4 Samples Metallographic Mounting Press 4KW 220V

4 Samples Metallographic Mounting Press 4KW 220V
4 Samples Metallographic Mounting Press 4KW 220V

Large Image :  4 Samples Metallographic Mounting Press 4KW 220V Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Model Number: HYXQZ-2
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 3-8 work days
Payment Terms: T/T
Detailed Product Description
Pressure Method: Hydraulic Loading Effective Depth Of Mold: 70mm
Mold Specifications: Standard φ30 (optional: φ22, φ45), Special Can Be Customized Can Be Mounted At The Same Time: 4 Samples
High Light:

4 Samples Metallographic Mounting Press


4KW Metallographic Mounting Press


4KW 220V specimen mounting

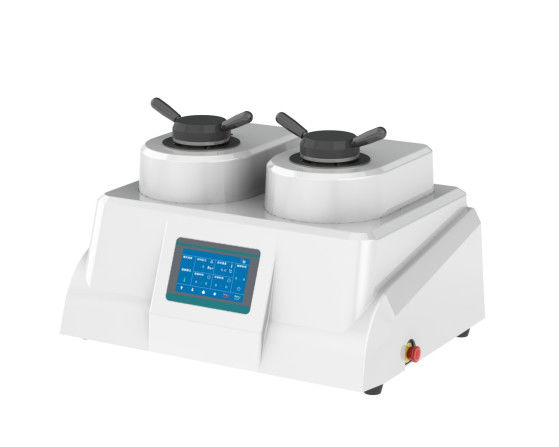

HYXQZ-2 Automatic Metallographic Specimen Mounting Machine


1.Product overview

Metallographic specimen inlay is a very important step in the process of metallographic specimen preparation. It is especially suitable for some tiny samples which are difficult to handle or have irregular shape, easy to hand or follow-up automatic grinding and polishing (can be used with the company's automatic grinding and polishing machine, the effect is better.). It is especially suitable for specimens with edge protection or with automatic grinding and polishing. The inlaying of specimens is an essential working procedure. It is especially suitable for metallographic laboratories in factories, colleges and universities and scientific research institutions, it is the best choice for metallographic sample inlay.


2.Main functions and features

1,The shell adopts high-end ABS one-piece forming, with novel appearance and high-end atmosphere.

2,Touch screen display control, clear and intuitive interface, easy to operate.

3,Using high-end precision hydraulic, mute technology, the whole working process noise-free

4,The whole process is fully automatic closed-loop control, only one key to automatically complete all the mosaic process.

5,With cooling system, cooling faster, more efficient mosaic, cooling mode can choose time cooling mode, set the cooling time, when the automatic stop, can also choose temperature cooling mode, set the cooling temperature, to achieve automatic stop temperature.

6,A variety of mold specifications optional, special mold can be customized according to customer needs.

7,Manual operation can be automatic operation, according to customer needs can be arbitrary DIY operation, more flexible and convenient to use.

8,Can store more than 100 sets of MOSAIC PROCESS FORMULA, easy to quickly call, to achieve serial production.

9,According to customer needs to meet customer customized needs, all-round one-stop service.

10,Four samples can be embedded at the same time, so that the mosaic efficiency doubled in an instant

11,Program built-in Intelligent Algorithm, can choose time mode and intelligent mode (especially suitable for first-time users).


3.Technical parameter

Name Parameters
Die Specification Double Barrel Standardφ30(Matching:φ22,φ45),Degree Centigrade
Effective depth of die 70mm
Heating Power 4KW
Afterburner mode Hydraulic pressurization
System pressure 0-300Bar
Temperature setting range 0-60Bar
Pressure setting range 0-200Degree Centigrade
Cooling setting range 0-99Minutes
Mosaic time 0-99Minutes
Suitableformosaic material 5In minutes(From heating to 155 degrees to cooling to 40 degrees, black inlay, inlay thickness within 20 mm)
Power supply Thermoplasticity and thermoset
Total power Voltage:220V Voltage:50HZ
Contour dimension 4.5KW
Weight 760X580X550
Temperature setting range 95KG

4 Samples Metallographic Mounting Press 4KW 220V 0

4.Configuration list

Product accessories Unit Quantity Notes
Φ30Die Assembly 1 One Has Been installed on the device
MOSAIC (black) 500 Michael
Feeding Spoon 1 One
Funnels 1 One
Brush 1 One
Intake pipe 1 Root 6Split interface
Outlet Pipe 1 Root
Technical Documentation 1 copy of product description 1 Certificate of conformity
