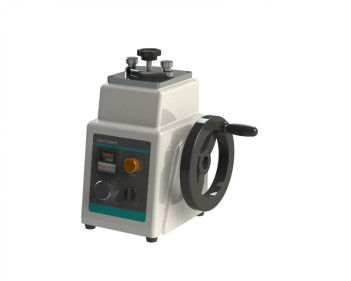

XQ-2B Metallographic Mounting Press 35mm 45mm 400W
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pressing Method: | Manual Mechanical Pressure | Effective Depth Of Mold: | 35mm |
|---|---|---|---|
| Mold Specifications: | 45mm | ||
| High Light: | 35mm XQ-2B Metallographic Mounting Press,35mm Metallographic Mounting Press,400W mounting press |
||
XQ-2BType Metallographic Sample Inlay Machine Manual Mechanical Pressure Type Mounting Machine
1.Product overview
XQ-2BM Type metallographic sample inlay machine is used to inlay micro or irregular specimen which is not easy to handle. It is a necessary process before grinding and polishing with thermosetting polymer. The mechanical inlay machine, heating temperature controlled by digital thermometer, various stable and reliable performance, for more safe operation, this machine is equipped with security protection cover, is the best sample inlay equipment.
2.Main functions and features
1, Economical and durable
2, Using precision mechanical transmission pressure, durable
3, Suitable for micro, irregular shape, need to protect the edge of the sample or need to be automatically polished samples
3.Technical parameter
| Name | Specifications | Name | Specifications |
| Die Specification | Standard fittingφ30(Matching:φ22φ45)Specialcustomizable | Suitableformosaic material | Thermoset |
| Effective dep th of die |
35mm | Power supply |
Voltage:220V Frequenc:50HZ |
| Heating Power | 400W | Total power | 400W |
| Afterburner mode | Manualmechanicalpressurization | Contourdimension | 330X250X370 |
| Temperature setting range | 0-200Degree Centigrade | Weight | 30KG |
| Tessellationtime setting range | 0-30Minutes(The General Mosaic Time is suggested to be about 15 minutes) | ||
4.Configuration list
| Product accessories | Unit | Quantity | Notes |
| Φ30Die Assembly | 1 | One | Has Been installed on the device |
| MOSAIC (black) | 200 | Michael | |
| TechnicalDocumentation | 1 copy of product description 1 Certificate of conformity | ||
