XHRS-150 Rockwell Hardness Tester

XHRS-150 Rockwell Hardness Tester

XHRS-150 Rockwell Hardness Tester
XHRS-150 Rockwell Hardness Tester XHRS-150 Rockwell Hardness Tester

Large Image :  XHRS-150 Rockwell Hardness Tester Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate Of Compliance
Model Number: XHRS-150
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 3-15work days
Payment Terms: T/T
Detailed Product Description
Hardness Reading: Directly Display The Test Hardness Value Through The Large LCD Screen; Rocker Ruler: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK
Test Force: 60kgf、100kgf、150kgf
High Light:

XHRS-150 Rockwell Hardness Tester

,

60kgf Rockwell Hardness Tester

,

150kgf rockwell c hardness tester

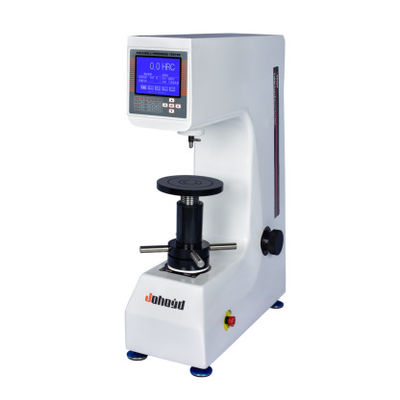

Digital Display Plastic Rockwell Hardness Tester (XHRS-150)

XHRS-150 digital plastic Rockwell hardness tester has a novel appearance and menu-oriented interface. The measuring device adopts grating sensor and computer control. The hardness value is directly displayed on the LCD screen. It is a mechatronics hardness tester.The machine can automatically convert various hardness parameters, identify the minimum thickness of the test piece, identify the minimum thickness of the test piece, and determine the ambient temperature of the test.Built-in printer to read relevant test results. Automatic operation is realized, and human operation and reading errors are eliminated.







Main functions and features:

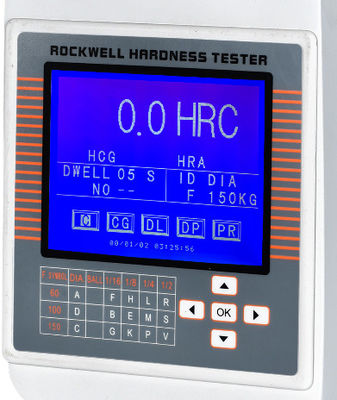

1. Directly display the test hardness value through the large LCD screen;

2. The shell is made of one-time molding and casting by a special sand-finding process, with a stable structure and no deformation, and can work in a relatively harsh environment; the car paint has high grades, strong scratch resistance, and it is still bright as new after years of use;

3. We have the ability to develop, design, produce and process by ourselves, and provide parts replacement and maintenance and upgrade services for the machine for life;









Main purpose and scope of application:

Casting and forging parts ·Sample test and acceptance inspection

Flat and cylindrical workpieces · Steel, non-ferrous metals

Automobile and aviation industry ·Cemented carbide, ceramics, stainless steel, laboratory and workshop non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals





Main technicial parameters:

name data
Intial test force (N) 10kgf(98.07N) allowable error ±2.0%
Total test force (N) 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell ruler HRE,HRM,HRL,HRR,HRF,HRG,HRH,HRK
Inspection standard GB/T230 National Standard, JJG884 Verification Regulation
accuracy 0.1HR
Durating time(s) 1-60
Hardness reading LCD
Max height of the test piece(mm) 190
Indenter center to body distance(mm) 165
dimension(mm) 520×240×720
Power supply 220V/50HZ
Weight (kg) 70
Measuring range HRD:40-77 HRE:70-94 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-110 HRR:114-125



XHRS-150 Rockwell Hardness Tester 0

packinglist:

No name(specification) quantity
1 φ3.175mmball indenter 1
2 φ6.35mmball indenter 1
3 φ12.7mmball indenter 1
4 Large ,medium and V-test beanches 3
5 Standard plastic rockwell hardness blocks
6 HRE, HRL ,HRM, HRR 1 each
7 fuse 2A 2
8 Power supply line 1
9 RS-232communication line 1
10 Weight A,B,C 3
11 Dustproof plastic cover 1
12 Product certification manual 1
13 Print paper ,printer instruction manual 1 each
14 Product instruction manual 1
