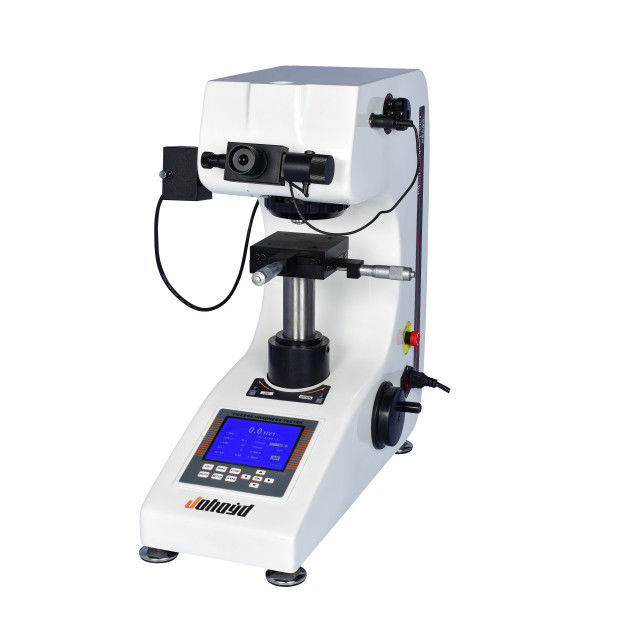

HV0.2 0.2kgf Micro Vickers Hardness Tester 220V

HV0.2 0.2kgf Micro Vickers Hardness Tester 220V

HV0.2 0.2kgf Micro Vickers Hardness Tester 220V
HV0.2 0.2kgf Micro Vickers Hardness Tester 220V

Large Image :  HV0.2 0.2kgf Micro Vickers Hardness Tester 220V Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate Of Compliance
Model Number: HVS-1000Z (side swing lifting system)
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Detailed Product Description
Lifting System: Side Shake Display: LCD Large Screen
Objective Lens Indenter Conversion: Automatic Micrometer Eyepiece: Digital Display
High Light:

0.2kgf Micro Vickers Hardness Tester


HV0.2 Micro Vickers Hardness Tester


220V micro vickers hardness

Digital Display Automatic Turret Type (Side Swing Lifting System) Micro Hardness Tester (HVS-1000Z Large Screen)


The digital display automatic turret type microhardness tester can meet the basic Vickers hardness tester test requirements. The upgraded digital display micrometer eyepiece can directly read the measurement length, so that the measured value can be obtained more quickly and accurately. The tower can automatically switch the eyepiece and the indenter to avoid damage to the instrument caused by manual error, and also greatly improve the efficiency.The upgraded side-swing lifting system has higher accuracy, and the lifting platform is more stable during the test, and there is no need to focus again after the test is completed. The large LCD screen is convenient for observation, and the test conditions and test process are intuitive and clear.


Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;

2. The large LCD screen of the industrial display screen can display the test method, test force, measured indentation length, hardness value, converted hardness, test force retention time, measurement times and can enter year, month, date, test results and data Processing etc.;

3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the pure white car paint is of high grade, the scratch resistance is strong, and it is still bright as new after years of use;

4. Our company has the capability of R&D, design, production and processing by ourselves, and the machine provides parts replacement and maintenance upgrade services for life;

5. The HVS-1000Z model is realistic: the measured length can directly confirm the hardness value.

6. The HVS-1000Z model can realize: the position switch of observation-test-measurement is completed by automatic turret.

7.The side rocking lifting system greatly improves the stability and accuracy, and there is no need to focus again after the test is completed.


The main purpose and scope of application:

1.Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafers, ceramic materials


Technical Parameters:

Parameter name Parameter data
Micro hardness scale HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display Holding time (seconds), hardness value
Test force (gf) 10,25,50,100,200,300,500,1000
Loading control Automatic (load/hold/uninstall)
Test force retention time (s) 5 ~60
Test force selection External selector knob, test force is automatically displayed on the LCD screen
Objective magnification 10×, 40×
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system 1.Automatic digital encoder;
2.The total magnification (μm): 100 × (observation), 400 × (measurement);
3.measuring range (μm): 200;
4.Resolution (μm): 0.01
Hardness measurement range (5-3000) HV
XY test platform Size (mm): 100×100
Travel range (mm): 25×25
Minimum reading (mm): 0.01
Maximum height of specimen 110(mm)
Maximum width of specimen (mm) 85 (distance from the center line of the indenter to the wall)
Data output Reserve built-in mini printer interface (RS232 serial interface), optional installation
Voltage AC220V/50HZ
Weight (kg) 35
Dimensions (540×200×530)mm


HV0.2 0.2kgf Micro Vickers Hardness Tester 220V 0

Standard configuration:

1.Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1) 2.Test platform, weight, microscope accessory box;
3.Weights x6 4.Weight bar x1
5.Cross table x1 6.Sheet clamping table x1
7.Flat mouth clamping table x1 8.Filament holding table x1
9.Level meter x1 10.Screwdriver x2
11.Horizontal adjustment screws x4 12.External power cord x1
13.10× Digital Micrometer Eyepieces x1 14.Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each )
15.Fuses (1 A) x2 16.Product certification x1
17.Product Instruction Manual x1 18.Dust cover x1


1. Optional built-in printer, measurement data, a key print, can also upload the computer.
2. Optional hardness meter measurement software can eliminate manual error, computer operation, improve efficiency and accuracy.
