HVT-1000Z Micro Vickers Hardness Tester HV0.05 0.1kgf

HVT-1000Z Micro Vickers Hardness Tester HV0.05 0.1kgf

HVT-1000Z Micro Vickers Hardness Tester HV0.05 0.1kgf
HVT-1000Z Micro Vickers Hardness Tester HV0.05 0.1kgf HVT-1000Z Micro Vickers Hardness Tester HV0.05 0.1kgf HVT-1000Z Micro Vickers Hardness Tester HV0.05 0.1kgf

Large Image :  HVT-1000Z Micro Vickers Hardness Tester HV0.05 0.1kgf Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Model Number: HVT-1000Z
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Detailed Product Description
Objective Lens Indenter Conversion: Automatic Micrometer Eyepiece: Digital Micrometer Eyepiece
Display Screen: 7 Inch Touch Screen Display Lifting System: Hand Plate Screw
High Light:

HVT-1000Z Micro Vickers Hardness Tester


HVT-1000Z HV0.05 Micro Vickers Hardness Tester


HVT-1000Z 0.1kgf vickers hardness machine

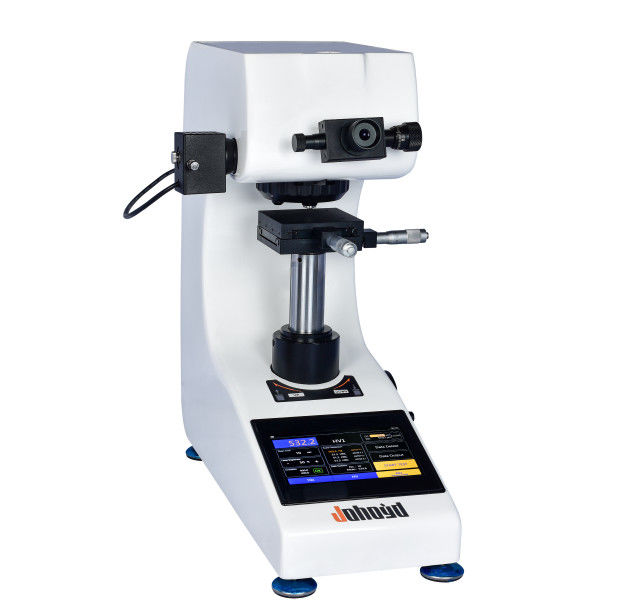

Large Touch Screen Micro Vickers Hardness Tester (HVT-1000Z)

  This digital automatic turret micro hardness tester is a new generation of multi-function touch screen micro hardness tester newly developed by our company. The hardness tester has novel shape, good reliability, operability and repeatability. Ideal for hardness. The machine adopts C language programming, high magnification optical measurement system and optical dual-channel structure, and new technologies such as photoelectricity and photocoupler sensing can meet the basic Vickers hardness test requirements, so that the measured values can be more quickly and accurately obtained and upgraded. The subsequent control operating system uses a 7-inch LCD touch screen to provide more

measurement data and more comprehensive and accurate control.


Technical Parameters:

Parameter name Parameter data
Micro hardness scale HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display 7-inch LCD touch screen
Test force (gf) 10,25,50,100,200,300,500,1000
Loading control Automatic (load/hold/uninstall)
Test force retention time (s) 5 to 60
Test force selection External force selection knob, the test force is automatically displayed on the 7-inch LCD touch display
Objective magnification 10×, 40×
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system

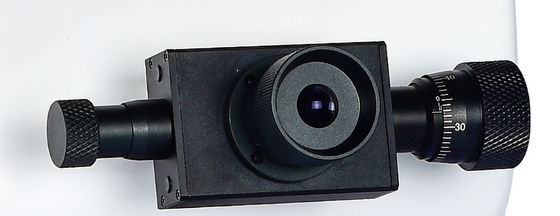

1. Manual micrometer eyepiece;

2. Total magnification (μm): 100 × (observation), 400 × (measurement);

3. Measurement range (μm): 200;

4. Resolution (μm): 0.25

Hardness measurement range (5-3000) HV
XY test platform Size (mm): 100×100
Travel range (mm): 25×25
Minimum reading (mm): 0.01
Maximum height of specimen (mm) 90
Maximum width of specimen (mm) 120(distance from the center line of the indenter to the wall)
Voltage AC220V/50HZ
Weight (kg) 35
Dimensions (400*290*480))mm



Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, the vision is comfortable, and it is not easy to fatigue for a long time operation.

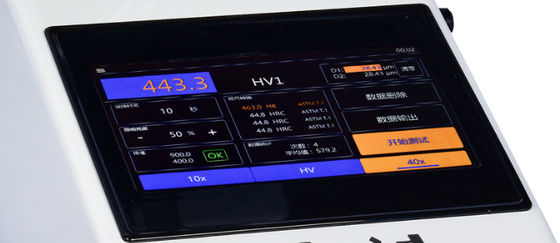

2. The 7-inch LCD touch screen can display the hardness value, converted hardness, test method, test force, brightness, holding time, measurement times, statistical data, upper and lower limits measurement range, test time and other test processes intuitively;

3. The system comes with a calibration function, which can manually adjust the input error calibration instrument;

4. Adjustable range of optical system brightness: 0-100;

5, can store up to 100 sets of test data;

6. The unit of test force can be selected and converted manually. The conversion unit is: (Kgf, N)

7, can display simultaneously: maximum, minimum, average, maximum error, sample difference;

8. The main interface can display 4 conversion scales at the same time and can be switched: national standards, American standards and international standards. A total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK , HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;

9. The upper and lower limit measurement range can be set and displayed on the main measurement interface;

10. The measuring scale can be converted into HK Knoop hardness;

11. The operating system can be converted between Chinese and English;

12, optional built-in printer, test data can also be exported to U disk via USB for analysis;

13, HVT-1000Z models can be realized: observation-test-measurement position switching is completed by the automatic turret

14. The primary molding structure of the cast aluminum shell is stable and not deformed. The pure white car paint has a high grade and strong scratch resistance. It is still bright as new after years of use;

15. Our company has the capability of independent research and development, design, production and processing, and our machine provides parts replacement and maintenance upgrade services for life;



The main purpose and scope of application:

1.Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafer




HVT-1000Z Micro Vickers Hardness Tester HV0.05 0.1kgf 0

Standard configuration:

1.Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1)

2. Test platform, weight, microscope accessory box;
3. Weights x6 4. Weight bar x1
5. Cross table x1 6. Sheet clamping table x1
7. Flat mouth clamping table x1 8. Filament holding table x1
9. Level meter x1 10. Screwdriver x2
11. Horizontal adjustment screws x4 12. External power cord x1
13.10× Digital Micrometer Eyepieces x1 14. Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each )
15. Fuses (1 A) x2 16. Product certification x1
17. Product Instruction Manual x1 18. Dust cover x1


1. The optional side-sway lifting system makes the lifting system more stable and accurate.
2. Side swing lifting system, optional Z-axis jog lifting to improve efficiency.
3. Optional built-in printer, one-click printing of measurement data.
4. Optional computer measurement software, computer operation, improve efficiency, eliminate human error, more accurate accuracy, can produce data reports.
