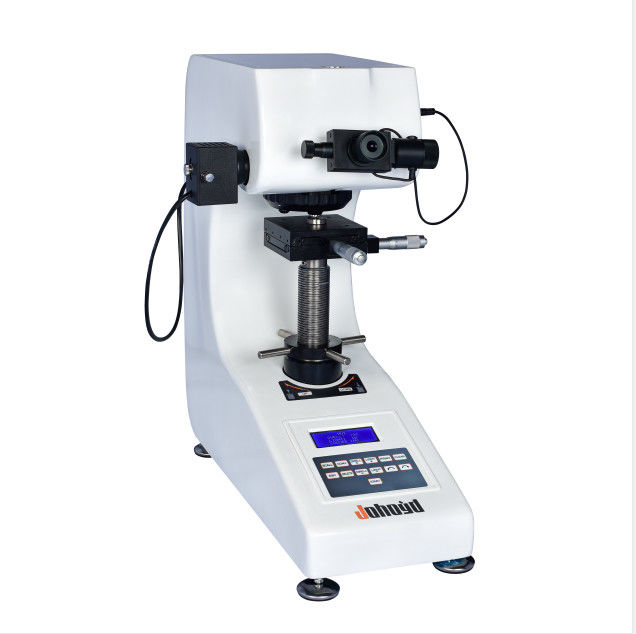

500gf Micro Vickers Hardness Testing Machine HV0.3 Manual Turret

500gf Micro Vickers Hardness Testing Machine HV0.3 Manual Turret

500gf Micro Vickers Hardness Testing Machine HV0.3 Manual Turret
500gf Micro Vickers Hardness Testing Machine HV0.3 Manual Turret

Large Image :  500gf Micro Vickers Hardness Testing Machine HV0.3 Manual Turret Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate Of Compliance
Model Number: HV-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 3-8 work days
Payment Terms: T/T
Detailed Product Description
Scope Of Application:: Steel, Non-ferrous Metals, Metal Foil, Cemented Carbide, Metal Sheet, Microstructure Micrometer Eyepiece: Manual Turret
Indenter: Manual Turret
High Light:

500gf Micro Vickers Hardness Testing Machine


HV0.3 Micro Vickers Hardness Testing Machine


500gf HV0.3 Manual Turret vickers tester

                                                          Micro Vickers Hardness Tester(HV-1000)

  The micro hardness tester can meet the basic Vickers hardness test requirements, and the upgraded control system can provide more measurement data, and the control is more comprehensive and accurate.


Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;

2. The industrial display screen can directly display the hardness value, convert the hardness, test method, test force, holding time, measurement times, and the test process is intuitive and clear;

3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the pure white car paint is of high grade, the scratch resistance is strong, and it is still bright as new after years of use;

4. Our company has the ability to research, develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life;


Technical Parameters:

Parameter name Parameter data
Micro hardness scale HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display Holding time (seconds), hardness value
Test force (gf) 10,25,50,100,200,300,500,1000
Loading control Automatic (load/hold/uninstall)
Test force retention time (s) 5 ~60
Test force selection External selector knob, test force is automatically displayed on the LCD screen
Objective magnification 10×, 40×
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system

1. Manual micrometer eyepiece;

2. Total magnification (μm): 100× (observation), 400× (measurement);

3. Measuring range (μm): 200; 4. Resolution (μm): 0.25

Hardness measurement range (5-3000) HV
XY test platform Size (mm): 100×100
Travel range (mm): 25×25
Minimum reading (mm): 0.01
Maximum height of specimen (mm) 110
Maximum width of specimen (mm) 85 (distance from the center line of the indenter to the wall)
Voltage AC220V/50HZ
Weight (kg) 35
Dimensions (540×200×530)mm


The main purpose and scope of application:

1.Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures500gf Micro Vickers Hardness Testing Machine HV0.3 Manual Turret 0

2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafers, ceramics


Standard configuration:

1.Host (Micro Vickers indenter x1, 10x objective x1, 40x objective x1) 2.Test platform, weight, microscope accessory box;
3.Weights x6 4.Weight bar x1
5.Cross table x1 6.Sheet clamping table x1
7.Flat mouth clamping table x1 8.Filament holding table x1
9.Level meter x1 10.Screwdriver x2
11.Horizontal adjustment screws x4 12.External power cord x1
13.10× Digital Micrometer Eyepieces x1 14.Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each )
15.Fuses (1 A) x2 16.Product certification x1
17.Product Instruction Manual x1 18.Dust cover x1



1. The optional side-sway lifting system makes the lifting system more stable and accurate.
2. Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.
