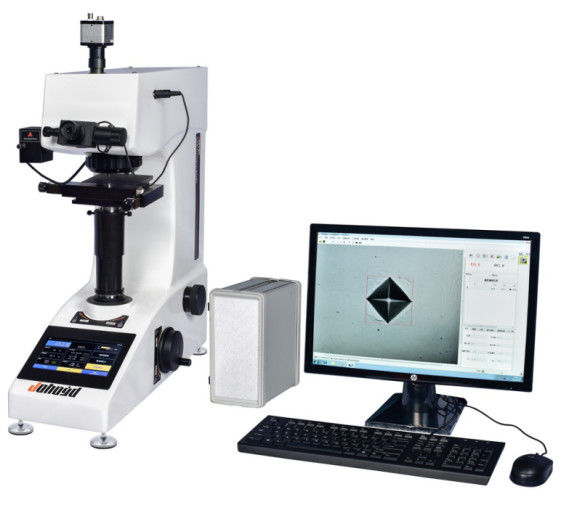

Semi-auto Vickers Hardness Tester BHVST-10ZXY

(HV0.1,HV0.2,HV0.3,HV0.5,HV1,HV3,HV5,HV10)

(0.1, 0.2,0.3,0.5 ,1,3,5,10)

, Automatic digital encoder;

2. Total magnification (μm): 100× (observation), 200× (measurement);

3. Measuring range (μm): 400; 4. Resolution (μm): 0.125.0625

Automatically record the measurement data, automatically generate the hardness-depth curve, save or print the hardness-depth curve and all indentation measurement values; save or print the indentation image and the current indentation hardness value;

The inspection report can be customized according to user requirements; through the data processing software, the hardened layer depth value formed after continuous measurement of the sample can be displayed in the form of a table; various measurement data, D1, D2, hardness value table, hardened layer depth, Maximum value, average value, minimum value, display and output each indentation picture. Data such as hardness value, hardness table, hardened layer depth map and picture insertion can be flexibly edited and printed in WORD or EXCEL to print out a test report containing mathematical statistics and hardened layer depth curve and saved in WORD format or EXCEL, and the observed samples can also be printed The topography map is saved and directly reflects the microstructure of the indentation and background,

The point can be automatically selected by clicking any point in the interface with the mouse, and the start position of the straight line can be set and the random moving position can be set. The automatic XY stage stage can be controlled by the mouse to move arbitrarily in 8 directions, and the speed can be adjusted. It can be reset automatically, and the coordinates can be cleared at will;

The software system can be programmed to control the movement of the automatic stage, and the system provides 14 modes:

1) Along the line; 2) With an angle along the line; 3) Free click;

4) Along the horizontal line; 5) Along the vertical line; 6) Multiple lines along the curve;

7) Matrix along the curve; 8) Arc; 9) Tooth center;

10) Tooth tops are parallel; 11) Automatically along the edge with angle; 12) Automatically along the edge matrix;

13) Center of circle; 14) Parallel to multiple tooth tops along the curve.

Test force choose one from four

1, (0.3, 0.5, 1, 2, 3, 5) 2, (0.3, 0.5, 1, 3, 5, 10.)

3. (1, 3, 5, 10, 20, 30) 4, (1, 5, 10, 20,, 30, 50);

The test force can be converted into: (Kgf, N);

The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and long-term operation not easy to fatigue;

The 7-inch LCD touch screen can directly display the hardness value, the conversion hardness, the test method, the test force, the holding time, the number of measurements, and the test process is intuitive and clear;

The system comes with a calibration function, which can manually adjust the input error calibration instrument;

The upper and lower limit measurement range can be set and displayed on the main measurement interface;

Loading method: fully automatic;

Lens and indenter conversion: fully automatic;

The coincidence accuracy of the center of the objective lens and the indenter is less than 1um;

The cast aluminum shell is formed at one time, the structure is stable and does not deform, the pure white car paint is of high grade, and the scratch resistance is strong;

The result is converted into Rockwell, Vickers, and Brinell simultaneously;
