Automatic Rotation Digital Hardness Testing Machine

Automatic Rotation Digital Hardness Testing Machine

Automatic Rotation Digital Hardness Testing Machine
Automatic Rotation Digital Hardness Testing Machine

Large Image :  Automatic Rotation Digital Hardness Testing Machine Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate Of Compliance
Model Number: PCHVT-10Z
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 5-15work days
Payment Terms: T/T
Detailed Product Description
Vickers Hardness Scale: HV0.3,HV0.5,HV1.0,HV3.0 ,HV5.0,HV10.0 Digital Eyepiece: 10X Digital Display Micrometer Eyepiece
Hardness Value Display: Touch Tablet Tower Rotation: Automatic Rotation
High Light:

HV0.5 HV0.3 Automatic Digital Hardness Testing Machine

,

HV0.3 Digital Hardness Testing Machine

,

HV0.5 digital hardness tester

PCHVT-10Z Integrated Intelligent Visual Hardness Tester, Easy To Get Measurement





Integrated intelligent visual hardness tester, only need to operate a touch tablet computer, easy to get the measurement! And all the parameters required for the test can be selected, modified and analyzed directly on the computer. The PC terminal is connected in series with the hardness tester through the communication protocol to realize the control of the mechanical movement of the hardness tester. It can realize: automatic multi-function tower, automatic identification of objective lens and indenter, automatic loading, automatic load preservation, automatic unloading, light brightness. By linking the built-in CCD measurement and acquisition system, it can display clear indentation image dynamics on the PC in real time, and can also directly lock the indentation to automatically measure the hardness value, automatically save the test data, and generate a report. The operation is very simple and fast, eliminating human measurement errors. Integrated intelligent visual hardness tester, with tablet computer as the platform, can expand more application functions through the Internet, and can also be connected to external monitors, printers and other equipment. The side-swing lifting screw adopts a worm gear structure, and the transmission is stable.

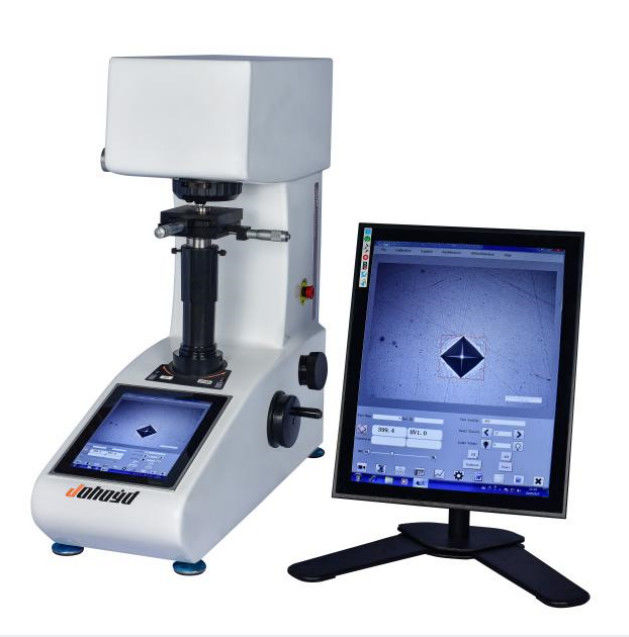

Automatic Rotation Digital Hardness Testing Machine 0

Integrated synchronous touch screen on the side is optional





1. Industrial tablet computer integration, USB expansion

2. Equipped with the latest Windows operating system, I7 processor

3. Built-in CCD image automatic measurement system

4. Visual display of indentation and automatic hardness measurement

5. Automatically record measurement data, generate hardness-depth curve, and save it as a WORD file

The machine is equipped with a Vickers automatic measurement control system: it can carry out successive experiments with each load and each indentation read. The convenient ccd camera is used to observe and measure the indentation directly on the display, which has high measurement accuracy and avoids manual measurement errors. For setting test conditions, display results, etc. can be operated and displayed clearly and quickly. Through the measurement control software, it can be easily operated on the built-in computer to realize single-point measurement. Multi-point measurement can be randomly measured, statistical measurement data, and the distance between two or multi-point measurement points can be set arbitrarily for seepage depth measurement along X or Y Two-direction measurement, statistical measurement data, automatic calculation of the hardened layer depth according to the judgment value input by the user. Statistical calculation, conversion, display curve judgment, etc. Whether it is qualified, etc. The length of the measurable part can be saved and printed, etc.





Software features:

1. Hardness tester control: The system provides serial communication to control the operation of the hardness tester, such as turning the objective lens, loading, setting the holding time, adjusting the brightness of the light, and adjusting the feedback of the test force;

2. Automatic measurement: the system automatically measures the indentation, and automatically draws the hardening curve, updates the statistical results, etc.;

3. Manual measurement: The system provides manual measurement, including four-point measurement and diagonal measurement;

4. Hardness value conversion, correction, and effective verification: The system can simultaneously convert the measured micro Vickers hardness value to other hardness scales such as HB, HR, etc.; it can correct the measured value of the spherical cylindrical sample; Effective verification of the measured value of the sample;

5. Data statistics: automatically calculate the average value, variance, Cp, Cpk and other statistical values of the measured hardness, and can optionally save it automatically;

6. Data storage: single measurement data and images can be saved in a file for later recall, and can be automatically saved;

7. Test report: Automatically generate WORD or EXCEL document report; users can customize the report format; the standard format includes every single hardness measurement value, statistical value, indentation image, and hardening curve, etc.;

8. Knoop hardness: can be set to Knoop hardness measurement;

9. Fracture toughness: can be set to measure indentation fracture toughness;

10. Other functions: all functions of the microscopic image processing and measurement system, including image shooting, calibration, image processing, geometric measurement, document labeling, album management, and fixed-magnification printing, etc.;



Main functions and features of the machine:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;

2. The built-in PC can visually display the hardness value, convert the hardness, test method, test force, brightness, holding time, measurement times, statistical data, upper and lower limit measurement range, test time and other test procedures are intuitive and clear;

3. Adjustable range of optical system brightness: 0-100;

4. Unlimited storage of test report data;

5. The test force unit can be manually selected for mutual conversion, the conversion unit is: (Kgf, N)

6. Simultaneous display: maximum value, minimum value, average value, maximum error, etc.

7. The scale can be converted and can be switched: national standard, American standard and international standard, a total of 18 measuring scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;

8. Both objective lenses can directly measure the hardness,

9. The upper and lower limit measurement range can be set and displayed on the main measurement interface;

10. The measuring scale can be converted into HK Knoop hardness;

11. The operating system can be converted between Chinese and English;

12. The built-in measuring system can automatically measure the hardness value;

13. The cast aluminum shell has a stable and non-deformed structure once formed, the pure white car paint has high grade, strong scratch resistance, and it is still bright as new after many years of use;

14. Our company has the ability of self-developed design, production and processing, and our machines provide parts replacement and maintenance upgrade services for life;



Main purpose and scope of application:

1. Steel, non-ferrous metals, metal foil, cemented carbide, metal sheet, microstructure

2. Carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating

3. Glass, wafers,



Standard configuration:

Project Parameter data
Parameter name PCHVT-5Z(10Z/30Z/50Z)
Hardness scale (choose one from four)

1,( HV0.3,HV0.5,HV1,HV2,HV3,HV5)2,( HV0.3,HV0.5,HV1.0,HV3.0 ,HV5.0,HV10.0)

3,( HV1,HV3,HV5,HV10,HV20,HV30) 4,( HV1, HV5,HV10,HV20,HV30,HV50)

Test force (Kgf) (choose one from four)

1,( 0.3,0.5,1,2,3,5)2,(0.3, 0.5, 1.0, 3.0 , 5.0, 10.0)

3,(1,3,5,10,20,30) 4,( 1, 5,10,20,30,50)

Hardness measurement range (5-3000)HV
Unit conversion: Brinell, Rockwell, Knoop (and switchable: ASTM, ISO, JJG standards)
Hardness value PC automatically measures hardness
Qualified judgment The qualified range can be set, and the machine automatically reminds whether it is qualified
Language switch Chinese and English systems can be switched at any time
Error correction The system calibrates the hardness at any time
Ruler conversion HK (Knoop)
Hardness value conversion Brinell, Rockwell, Vickers
Testing report Automatic generated
Load control Auto load, auto hold, auto unload
Objective lens and indenter Automatic switching
Optical channel Support dual channel
Test force retention time (s) 5~60
Test force selection External force selection knob, test force is automatically displayed on the computer
Objective lens magnification 10×,20×
Optical system Total magnification (μm): 100× (observation), 200× (measurement); measuring range (μm): 400;
Optical system resolution (μm) 0.125
XY test bench Size (mm): 100×100 Stroke range (mm): 25×25 Minimum reading (mm): 0.01
Maximum height of specimen (mm) 150
Maximum width of test piece (mm) 120
voltage AC220V/50HZ
Weight (kg) 60
Dimensions 620mmX230mmX630mm



Standard configuration:

Micro Vickers Indenter 1piece 10X objective lens 1 piece 40X objective lens 1 piece
Weight bar 1piece Weight 6 pieces XY cross table 1 piece
Sheet holding table 1piece Flat clamping table 1 piece Filament clamping table 1 piece
Standard Vickers hardness block 2 sets wireless mouse 1 piece screwdriver 2 pieces
Level adjustment screw 4 pieces Spirit level 1 piece power cable 1 piece
Fuse 2 pieces Dust cover 1 piece Instruction certificate 1 set
Japanese ARTRAY industrial camera 1 set Optical adapter tube 1 set Dongle 1piece
Automatic measurement control system (built-in) 1 set PC computer (built-in) 1 set Touch screen external controller (optional) 1 set
Spare halogen bulb 1piece network port 1piece USB interface 3 pieces
