MP-1B Metallographic Sample Grinding Polishing Machine 1000rpm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Diameter Of Grinding Disc: | Standard φ203mm (other Specifications Customized) | Number Of Grinding Discs: | 1 Piece |
|---|---|---|---|
| Rotating Speed Of Grinding Disc: | 50-1000r/min (stepless Speed Regulation) | ||
| High Light: | MP-1B Metallographic Sample Grinding Polishing Machine,1000rpm Metallographic Sample Grinding Polishing Machine,203mm metallography polishing machine |
||

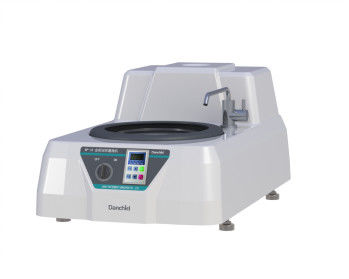

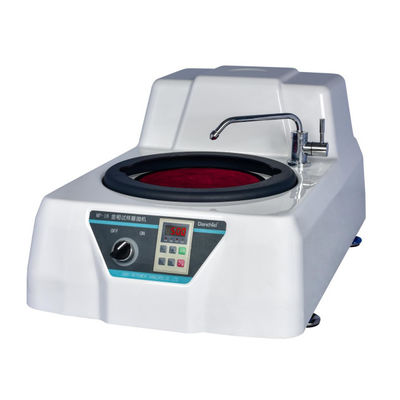

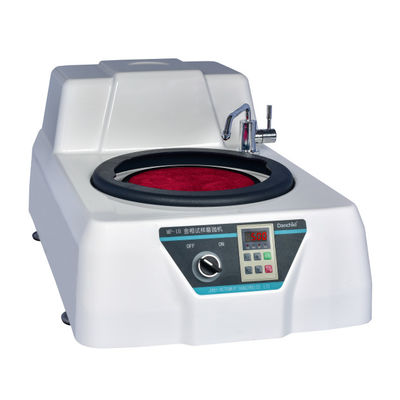

MP-1B Metallographic Sample Grinding And Polishing Machine
1.Product overview
In the process of metallographic sample preparation, the grinding and polishing of the sample are indispensable procedures. After the sample is polished, a mirror-like surface can be obtained. The MP-1B metallographic sample grinding and polishing machine adopts frequency converter to adjust the speed, which can make the speed of the grinding and polishing disk steplessly adjustable between 50-1000r/min. The grinding and polishing of the sample can be completed by replacing the metallographic sandpaper and polishing fabric. The polishing process shows a wider range of applicability. The shell adopts integral blister, novel appearance, stable rotation, low noise, convenient operation, high working efficiency, etc., and comes with a cooling device, which can cool the sample during grinding and polishing to prevent damage due to overheating of the sample Microstructure. It is suitable for the metallographic laboratory of factories, universities and research institutes. It is an excellent equipment for grinding and polishing metallographic samples.
2.Main functions and features
1. The shell is made of high-end ABS, which has a novel appearance and high-end atmosphere.
2. The faucet adopts all-copper chrome plating process, which has good corrosion resistance.
3. Stepless speed regulation, convenient and quick to meet various needs.
4. The grinding and polishing plate can be rotated clockwise or counterclockwise to meet different needs.
3. Technical parameters
| Diameter of Grinding Disc | Standard φ203mm (other specifications customized) |
| Rotating Speed of Grinding Disc | 50-1000r/min (stepless speed regulation) |
| Rotation direction of grinding and polishing disc | Forward and reverse |
| power supply | Voltage: 220V Frequency: 50HZ |
| Motor | 0.55KW |
| Appearance size | 730×420×320mm |
| weight | 35Kg |
4. configuration list
| Product accessories | unit | quantity | Remark |
| Grinding and polishing disc | indivual | 1 | Installed on the device |
| Water retaining ring | indivual | 1 | Installed on the device |
| Pressure ring | indivual | 1 | Installed on the device |
| Water sandpaper | open | 1 | Φ203mm |
| Polished fabric | open | 1 | Φ203mm |
| Inlet pipe | root | 1 | Φ 6 points interface |
| Outlet pipe | root | 1 | Φ32 |
| Technical documents | 1 copy of product manual 1 copy of product certificate | ||
