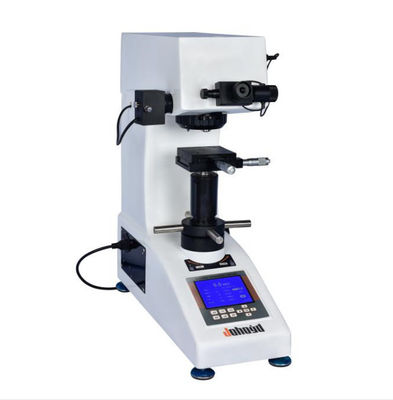

Digital Display Automatic Turret Type Large Display Vickers Hardness Tester (HVS-10Z)
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Vickers Hardness Scale: | HV0.3,HV0.5,HV1.0,HV3.0,HV5.0,HV10.0 | Digital Eyepiece: | 10X Digital Display Micrometer Eyepiece |
|---|---|---|---|
| Hardness Value Display: | Large LCD Screen | Tower Rotation: | Automatic Rotation |
Digital display automatic turret type
Vickers hardness tester (HVS-10Z)
The digital display automatic turret type Vickers hardness tester can meet the basic Vickers hardness tester test requirements. The upgraded digital display micrometer eyepiece can directly read the measurement length, so that the measured value can be obtained more quickly and accurately. The tower can automatically switch the eyepiece and the indenter to avoid damage to the instrument caused by manual error, and also greatly improve the efficiency.
Main functions and features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. The large LCD screen of the industrial display screen can display the test method, test force, measured indentation length, hardness value, test force retention time, measurement times and can enter the year, month, date, test results and data processing, etc.;
3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the car paint grade is high, the scratch resistance is strong, and it is still bright as new after years of use;
4. Our company has the ability to research, develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life;
5. The HVS-10Z model can directly confirm the hardness value by measuring the actual length;
6. The HVS-10Z model can realize: the position switch of observation-test-measurement is completed by the automatic turret;
7. The large LCD screen is convenient for observation, and the test conditions and test process are intuitive and clear;
8. Optional built-in printer; direct printing of test results and test data;
Main application scope:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;
2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;
3, glass, wafers, ceramic materials;
Technical Parameters:
| parameter name | Parameter data |
| Vickers hardness scale | HV0.3,HV0.5,HV1.0,HV3.0,HV5.0,HV10.0 |
| display |
5-digit hardness value, 4-digit diagonal length (D1, D2), Hold time, number of tests, average, standard deviation, return |
| Test force(Kgf) | 0.3,0.5,1.0 ,3.0,5.0,10.0 |
| Loading control | Automatic (load/hold/uninstall) |
| Test force retention time(s) | 1～99 |
| Optical channel | Dual light channels (eyepieces and CCD camera channels) |
| Optical system |
Objectives: 10×, 20× (Optional 40X) Eyepiece Magnification: 10× Total magnification (μm): 100×, 200× Measuring range (μm): 400 Resolution (μm): 0.125 |
| Hardness measurement range | (5-3000)HV |
| XY test stand (optional) |
Size (mm): 100×100 Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
| Maximum height of specimen (mm) | 165 |
| Maximum width of specimen (mm) | 130 (distance from the center line of the indenter to the wall) |
| Data output | Reserve built-in mini printer interface, (RS232 serial interface) optional installation |
| voltage | AC220V/50HZ |
| Overall size (mm) | 585×200×630 |
| Weight (kg) | 42 |
Standard configuration:
| Host | 1 |
| Weight | 3 |
| Cross measurement platform | 1 |
| Flat clamping table | 1 |
| Level adjustment screw | 4 |
| power cable | 1 |

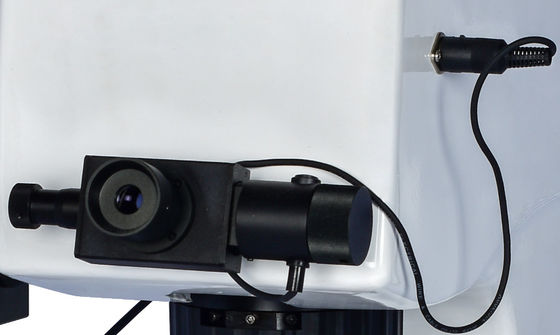

| 10X digital display micrometer eyepiece | 1 |
| Vickers hardness block | 2 |
| Spare fuse 2A | 2 |
| Product certification | 1 |
| Instruction Manual | 1 |
Remark:
Optional hardness tester measurement software to eliminate human error, computer operation, improve efficiency, and more precise accuracy.
Optional built-in printer, one-key printing of measurement data
