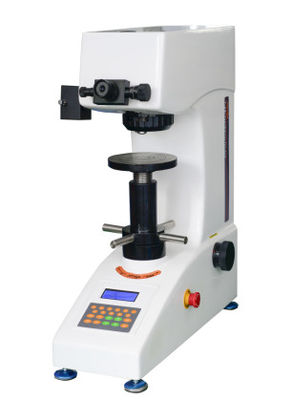

Vickers manual turret hardness tester Vickers hardness test 50 kg force HV-50

Vickers manual turret hardness tester Vickers hardness test 50 kg force HV-50

Vickers manual turret hardness tester Vickers hardness test 50 kg force HV-50
Vickers manual turret hardness tester Vickers hardness test 50 kg force HV-50

Large Image :  Vickers manual turret hardness tester Vickers hardness test 50 kg force HV-50 Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate of Compliance
Model Number: HV-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 5-8 Work days
Payment Terms: T/T
Detailed Product Description
Vickers Hardness Scale: HV1,HV5,HV10,HV20,HV30,HV50 Loading Control: Automatic (load/hold/uninstall)
Observation Eyepiece: 10X Digital Microscope Eyepiece Tower Rotation: Manual Rotation

Manual turret Vickers hardness tester (HV-50)

Manual turret Vickers gauges meet basic Vickers hardness test requirements, and upgraded control systems provide more measurements According to reports, the control is more complete and accurate.





Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.

2. On the industrial display screen, the hardness value can be visually displayed, the hardness can be converted, the test method, the test force, the time of the charge and the number of measurements, and the test process can be intuitively understood.

3, Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new;

4. Our company has its own R&D, production and processing capabilities. Our machines provide parts replacement and maintenance upgrade services for life.



Main application scope:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, Heat treatment;

3, glass, wafers, ceramic materials;

Technical Parameters:

parameter name Parameter data
Vickers hardness scale HV1,HV5,HV10,HV20,HV30,HV50
display

Automatic Reading Menu Display 5-digit hardness value, 4-digit diagonal length (D1, D2),

Hold time, number of tests, average, standard deviation, return

Test force(Kgf)

1.0Kgf(9.8N),5.0Kgf(49.0N),10Kgf(98.0N),

20Kgf(196N),30Kgf(294N),50Kgf(490N)

Loading control Automatic (load/hold/uninstall)
Test force retention time(s) 1~99
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system

Objectives: 10×, 20×

Eyepiece Magnification: 10×

Total magnification (μm): 100×, 200×

Measuring range: 800μm 400μm

Resolution :1μm 0.5μm

Hardness measurement range (5-3000)HV
XY test stand (optional)

Size (mm): 100×100

Travel range (mm): 25×25

Minimum reading (mm): 0.01

Maximum height of specimen (mm) 165
Maximum width of specimen (mm) 130 (distance from the center line of the indenter to the wall)
Executive standard

GB/T4340.2 Chinese Standard,

JJG151 Inspection Rule

voltage AC220V/50HZ
Overall size (mm) 585×200×630
Weight (kg) 42



Vickers manual turret hardness tester Vickers hardness test 50 kg force HV-50 0

Standard configuration

Host computer 1
weight 3
Large and medium "V" test benches 1each
Horizontal adjustment screw 4
Power cable 1
10X digital microscope eyepiece 1
Vickers hardness block 2
Spare fuse 2A 2
Product Certificate 1
Instruction Manual 1

Remarks: Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.
