Home ProductsMetallographic Sample Grinding Polishing Machine

Automatic Grinding Polishing Machine 1 Disc Touch Screen

Automatic Grinding Polishing Machine 1 Disc Touch Screen

Automatic Grinding Polishing Machine 1 Disc Touch Screen
Automatic Grinding Polishing Machine 1 Disc Touch Screen Automatic Grinding Polishing Machine 1 Disc Touch Screen

Large Image :  Automatic Grinding Polishing Machine 1 Disc Touch Screen Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Model Number: HMP-1AB
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 3-8 work days
Payment Terms: T/T
Detailed Product Description
Pedestal: One-piece Casting Of Aluminum Alloy Material Display: 7 Inch Touch Screen
Grinding Head Start Up: Single Action And Linkage Start Pressurization Method: Double Pressure Method (center Pressure And Single Point Pressure)
Speed Control Mode: Stepless Speed Regulation Or Four-speed Speed Regulation Mode Grinding And Polishing Disc: 1
High Light:

Automatic grinding polishing machine


1 Disc grinding polishing machine


Touch Screen sample polishing machine

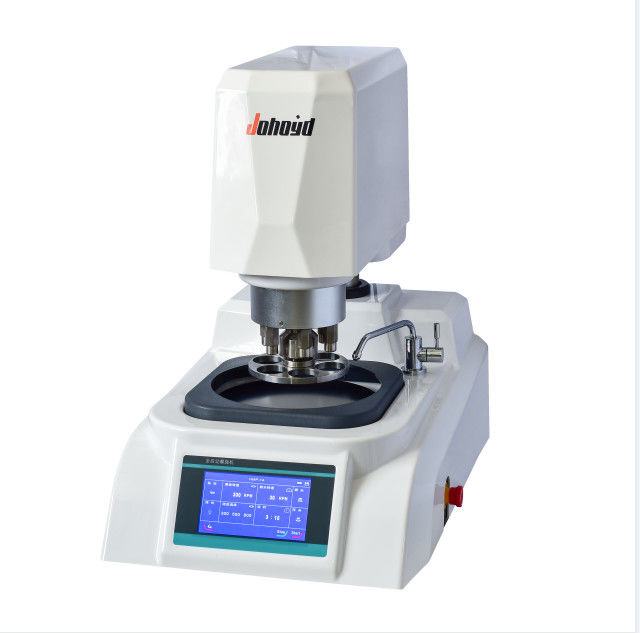

HMP-1AB Automatic Metallographic Sample Grinding And Polishing Machine


1. Product overview

HMP-1AB is a single-disc automatic grinding and polishing machine integrating pre-grinding, grinding and polishing. It adopts single chip microcomputer technology to control through touch screen, the grinding and polishing disc is driven by DC brushless motor, V-belt is used for transmission, the grinding head is driven by stepping motor, and the synchronous belt is used for transmission. It has the characteristics of stable rotation, low noise, long life, safety and reliability; You can adjust the rotation speed of the grinding head and the grinding and polishing plate according to the user's needs, set the pressure, set the sample preparation time, and adapt to different needs; comes with a lighting system, which is convenient to take and place samples; comes with a cooling device, which can be used during grinding Cooling the sample to prevent damage to the metallographic structure due to overheating of the sample. It is an ideal choice for metallographic sample preparation equipment in factories, scientific research units and laboratories of universities and colleges.


2. Main functions and features

1. The base is made of aluminum alloy casting and integral molding, which is light in weight, good in shock absorption and anti-corrosion.

2. The shell is made of ABS blister, which is novel in appearance and anti-corrosion.

3. The faucet adopts all-copper chrome plating process, which has good corrosion resistance.

4. It adopts touch screen control and display, easy to operate, clear and intuitive.

5. It has the function of timing, speed, and pressure.

6. The built-in nozzle is automatically cleaned in the dirt collecting tank.

7. Support stepless speed regulation or four-speed speed regulation mode, making speed regulation more convenient.

8. The grinding head is automatically locked with electromagnetic clutch, which is convenient and quick.

9. Support single action and linkage start of grinding and polishing plate and grinding and polishing head, which is more flexible to use

10. More than 10 sets of grinding and polishing process parameters can be stored for quick recall.

11. The magnetic disc design supports quick disc change, and it is more efficient to replace sandpaper and polishing fabric.

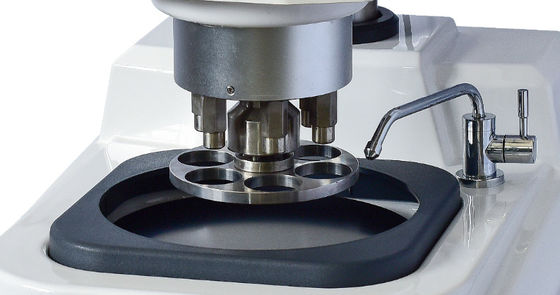

12. The sample chuck is automatically loosened and tightened, with the internal lighting system, which is convenient for taking and placing samples.

13. Equipped with a quick sample holding plate, which can be replaced at any time with holding plates of different diameters.

14. The whole machine adopts DC brushless and stepping motor, with stable rotation, low noise and long life.

15. Double pressure method, center pressure and single point pressure, more powerful functions

16. The emergency stop button can stop the operation quickly and conveniently, which is safer.


3.technical parameters

Product model HMP-1AB
Number of grinding discs 1
Diameter of grinding and polishing disc 254mm
Rotation speed of grinding and polishing plat

tepless speed regulation 100-1000r/min

Four-speed speed regulation 300 500 800 1000r/min

Rotation direction of grinding and polishing disc Forward and reverse
Grinding disc motor power 1.1KW
Rotation direction of grinding head Clockwise
Rotating speed of grinding head 0—150r/min
Grinding head motor Stepping motor 200W
Grinding head locking method automatic
Timing adjustable time 0-99min
Pressure adjustment method Automatic pressure regulation inside the system
Pressurization method Single point pneumatic pressure and center pneumatic pressure
Pressurized pressure Center: 0-150N (common range 40-120N) Single point: 0-90N
Number of specimen clamps 6
Clamping sample thickness 8-22mm (can be customized)
Specimen clamping specifications Standard Ф30, (Ф22 Ф30 Ф45 any specifications are optional, special specifications can be customized)
power supply 220V 50Hz
Total power 1.8KW
Appearance size 475*660*710mm
weight 80kg



                      Automatic Grinding Polishing Machine 1 Disc Touch Screen 0


4. configuration list

name number unit Remark
Grinding disc Φ254 1 piece Installed on the device
Magnetic disk 1 piece Installed on the device
Water retaining ring 1 piece Installed on the device
Anti-stick disk 2 piece Φ250mm
400 mesh adhesive sandpaper 4 piece Φ250mm
800mesh adhesive sandpaper 4 piece Φ250mm
1200mesh adhesive sandpaper 4 piece Φ250mm
Adhesive polishing cloth 4 piece Φ250mm
Inlet pipe 1 piece 6 points interface
Outlet pipe 1 piece Φ32
Technical documents 1 copy of product manual 1 copy of product certificate
