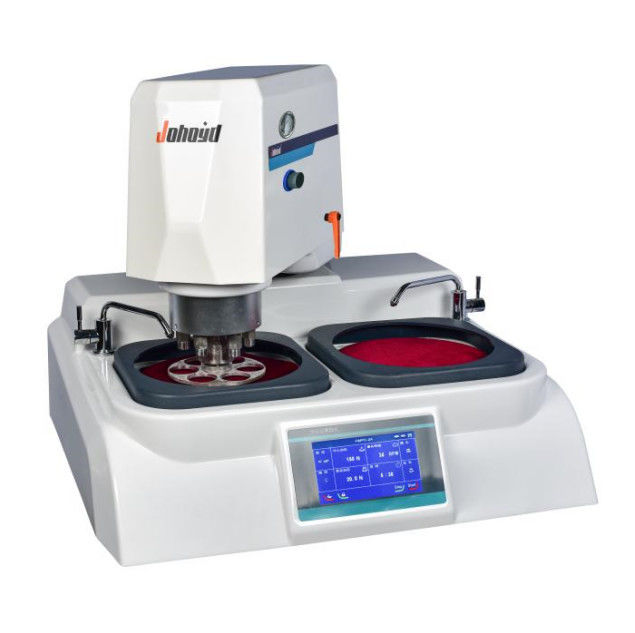

HMP-2A Metallographic Sample Grinding Polishing Machine

HMP-2A Metallographic Sample Grinding Polishing Machine

HMP-2A Metallographic Sample Grinding Polishing Machine
HMP-2A Metallographic Sample Grinding Polishing Machine HMP-2A Metallographic Sample Grinding Polishing Machine

Large Image :  HMP-2A Metallographic Sample Grinding Polishing Machine Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Model Number: HMP-2A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 3-8 work days
Payment Terms: T/T
Detailed Product Description
Display: 7 Inch Touch Screen Grinding And Polishing Disc: 2
Pressure Method: Single Point Pneumatic Pressure Diameter Of Grinding And Polishing Disc: 254mm
Number Of Specimen Clamps: 6
High Light:

HMP-2A Metallographic Sample Grinding Polishing Machine

,

254mm Metallographic Sample Grinding Polishing Machine

,

2.2kw grinding and polishing machine

HMP-2A Automatic Metallographic Specimen Grinding and Polishing Machine



1. Product overview

HMP-2A A double-disc automatic grinding and polishing machine integrating pre-grinding, grinding and polishing. It is controlled by a high-end touch screen, the grinding and polishing plate is driven by a DC brushless motor, and the V-belt is used for transmission. The grinding head is driven by a stepping motor. The timing belt is used for transmission. It has the characteristics of stable rotation, low noise, safety and reliability; Adjust the rotation speed of the grinding head and the grinding and polishing plate, set the pressure and sample preparation time by yourself, to adapt to different needs; comes with a lighting system, which is convenient to take and place samples; comes with a cooling device, which can cool the sample during grinding , In order to prevent damage to the metallographic structure due to overheating of the sample, it is an ideal choice for metallographic sample preparation equipment in factories, scientific research units and laboratories of universities and colleges.



2. Main functions and features

1. The base is made of aluminum alloy casting and integral molding, which is light in weight, good in shock absorption and anti-corrosion.

2. The shell is made of ABS blister, which is novel in appearance and anti-corrosion.

3. The faucet adopts all-copper chrome plating process, which has good corrosion resistance

4. Using touch screen control and display, easy to operate, clear and intuitive

5. One-key automatic start function. After the sample is placed in the clamping plate, click start, the pressure head will automatically press down, the grinding head and grinding plate will automatically run, the faucet will automatically discharge water, and the faucet will automatically close after the grinding and polishing is completed.

6. It has the function of timing, speed, and pressure

7. Built-in nozzle for automatic cleaning of sewage tank

8. Support stepless speed regulation or four-speed speed regulation mode, making speed regulation more convenient

9. Support single action and linkage start, more flexible to use

10. More than 10 sets of grinding and polishing process parameters can be stored for quick recall

11. The magnetic disc design supports quick disc change, which makes it quicker to change sandpaper and polishing fabric

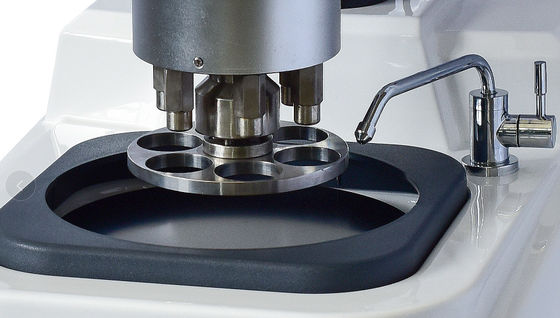

12. The sample chuck is automatically loosened and tightened, with the internal lighting system, convenient to take and place the sample

13. Equipped with fast sample clamping discs, which can be replaced at any time with clamping discs of different diameters

14. Dual-disk dual-control is more flexible to use, making sample preparation more efficient.

15. The whole machine adopts DC brushless and stepping motor, stable rotation, low noise and long life

16. The emergency stop button can stop the operation quickly and conveniently, which is safer

17. Double-disc design, sample preparation efficiency is more efficient



3.technical parameters

Product model HMP-2A
Number of grinding discs 2
Diameter of grinding and polishing disc 254mm
Rotation speed of grinding and polishing plate

Stepless speed regulation 100-1000r/min

Four-speed speed regulation 300 500 800 1000r/min

Rotation direction of grinding and polishing disc Two-way forward and reverse
Grinding disc motor power 2.2kw
Grinding and polishing disc control Dual-disk dual-control
Rotation direction of grinding head Clockwise
Rotating speed of grinding head 0—120r/min
Grinding head motor Stepping motor 200W
Grinding head locking method Manual (optional automatic)
Timing adjustable time 0-99min
Pressurization method Single point pneumatic pressure
Pressurized pressure 0-0.5Mpa (usually 0.2-0.3Mpa)
Number of specimen clamps 6
Clamping sample thickness 8-22mm(customizable)
Specimen clamping specifications Standard Ф30, (Ф22 Ф30 Ф45 any specifications are optional, special specifications can be customized)
power supply 220V 50Hz
Dimensions 755*660*710mm
weight 100kg



HMP-2A Metallographic Sample Grinding Polishing Machine 0



4. configuration list

Product accessories unit quantity Remark
Grinding disc Φ254 piece 2 Installed on the device
Magnetic disk piece 2 Installed on the device
Water retaining ring piece 2 Installed on the device
Anti-sticking disc piece 3 Φ250mm
400 mesh adhesive sandpaper piece 4 Φ250mm
800 mesh adhesive sandpaper piece 4 Φ250mm
1200 mesh adhesive sandpaper piece 4 Φ250mm
Adhesive polishing cloth piece 4 Φ250mm
Inlet pipe piece 1 Φ6
Outlet pipe piece 1 Φ32
Technical documents 1. 1 copy of product manual 2. 1 copy of product certificate
