P-1 Metallographic Sample Grinding Polishing Machine 220V
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Diameter Of Grinding Disc: | Standard φ203mm (other Specifications Customized) | Number Of Grinding Discs: | 1 Piece |
|---|---|---|---|
| Rotating Speed Of Grinding Disc: | 1400r/min | ||
| High Light: | P-1 Metallographic Sample Grinding Polishing Machine,220V Metallographic Sample Grinding Polishing Machine,Metallographic specimen polishing machine |
||

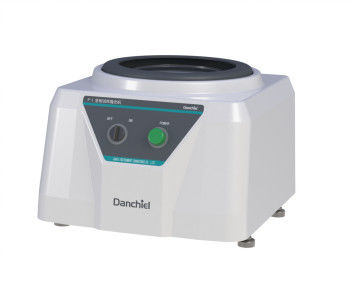

P-1 Metallographic Sample Polishing Machine
1. Product overview
In the process of metallographic sample preparation, the polishing of the sample is a major process. The purpose of polishing is to remove the fine abrasion marks on the grinding surface of the sample and obtain a bright mirror surface for observation and measurement of the metallographic structure under a microscope. The P-1 metallographic sample polishing machine can be used to polish the finely ground metallographic sample. The shell adopts integral plastic absorbing technology, with novel appearance, stable rotation, low noise, convenient operation, and high work efficiency. It can adapt to the polishing requirements of a variety of materials. It is suitable for the metallographic laboratory of factories, universities and research institutes. It is an excellent equipment for polishing metallographic samples.
2.Main functions and features
1. The shell is made of high-end ABS, which has a novel appearance and high-end atmosphere.
2. Economical and affordable, durable
3. Technical parameters
| Diameter of Grinding Disc | Standard φ203mm (other specifications customized) |
| Rotating Speed of Grinding Disc | 1400r/min |
| power supply | Voltage: 220V Frequency: 50HZ |
| Motor | 0.18KW |
| Appearance size | 520×420×320mm |
| weight | 19Kg |
4. configuration list
| Product accessories | unit | quantity | Remark |
| Polishing disc | indivual | 1 | Installed on the device |
| Water retaining ring | indivual | 1 | Installed on the device |
| Pressure ring | indivual | 1 | Installed on the device |
| Polished fabric | open | 2 | Φ203mm |
| Outlet pipe | root | 1 | Φ32 |
| Technical documents | 1 copy of product manual 1 copy of product certificate | ||
