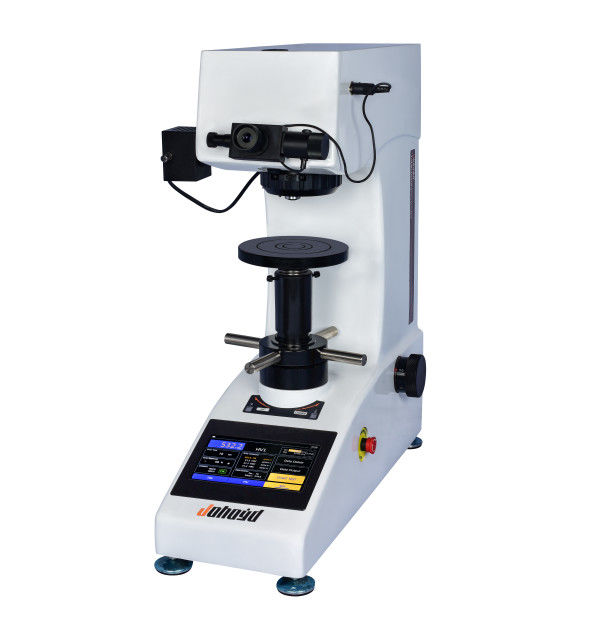

HV10 Digital Vickers Hardness Tester 10kgf Automatic Rotation

HV10 Digital Vickers Hardness Tester 10kgf Automatic Rotation

HV10 Digital Vickers Hardness Tester 10kgf Automatic Rotation
HV10 Digital Vickers Hardness Tester 10kgf Automatic Rotation

Large Image :  HV10 Digital Vickers Hardness Tester 10kgf Automatic Rotation Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate Of Compliance
Model Number: HVST-30Z
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Detailed Product Description
Vickers Hardness Scale: HV1,HV3,HV5,HV10,HV20,HV30 Digital Eyepiece: 10X Digital Display Micrometer Eyepiece
Hardness Value Display: 7 Inch Touch Screen Tower Rotation: Automatic Rotation
High Light:

HV10 Digital Vickers Hardness Tester


HV10 10kgf Digital Vickers Hardness Tester


HV10 Automatic micro vickers

Touch Screen Digital Display Manual Rotary Ta Vickers Hardness Tester (HVST-30Z)



The digital turret-type Vickers hardness tester can meet the basic Vickers hardness test requirements. The upgraded digital micrometer eyepiece can directly read the measurement length, so that the measurement value can be obtained more quickly and accurately. The tower can automatically switch the eyepiece and indenter to avoid artificial errors and damage the instrument, and also greatly improve the efficiency. With 7-inch LCD touch screen, you can provide more measurement data, control is more comprehensive and accurate.


Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;

2. The 7-inch touch screen can display the test method, test force, upper and lower limits of hardness value, measured indentation length, hardness value, test force retention time, measurement times and can enter year, month, date, test results and data processing Wait;

3. The system comes with a calibration function, and each test force can be manually adjusted to input the error calibration instrument;

4. The adjustable range of optical system brightness: 0-100;

5. It can store up to 100 sets of test data, and display the average value and test times data on the main interface;

6. The test force unit can be manually selected for mutual conversion, the conversion unit is: (Kgf, N)

7. The main interface can display 4 conversion scales at the same time, and can switch between national standards, American standards and international standards. A total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK , HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;

8. Both objective lenses can directly measure the hardness,

9. With diagonal length memory function, the diagonal length will be automatically memorized after shutting down, and it will be measured directly after starting up, no need to reset it twice.

10. The measuring scale can be converted into HK Knoop hardness;

11. Test data can be directly exported via USB

12. The upper and lower limit measurement range can be set and displayed on the main measurement interface

13. The operating system can be converted between Chinese and English;

14. Optional built-in printer, test data can also be output to U disk via USB for storage and analysis;

15. The HSVT-30Z model is realistic: the measured length can directly confirm the hardness value;

16. HVST-30Z model can realize: the position switch of observation-test-measurement is completed by automatic turret

17. The cast aluminum shell has a stable structure without deformation at one time, and the pure white car paint has a high grade, strong scratch resistance, and it is still bright as new after many years of use;

18. Our company has the ability to develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life


Main application scope:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;

3, glass, wafers, ceramic materials;


Technical Parameters:

parameter name Parameter data
Vickers hardness scale HV1,HV3,HV5,HV10,HV20,HV30

5-digit hardness value, 4-digit diagonal length (D1, D2),

Hold time, number of tests, average, standard deviation, return

Test force(Kgf)



Loading control Automatic (load/hold/uninstall)
Test force retention time(s) 1~99
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system

Objectives: 10×, 20×(Optional 20X 40X)

Eyepiece Magnification: 10×

Total magnification (μm): 100×, 200×

Measuring range (μm): 400

Resolution (μm): 0.125

Hardness measurement range (5-3000)HV
XY test stand (optional)

Size (mm): 100×100

Travel range (mm): 25×25

Minimum reading (mm): 0.01

Maximum height of specimen (mm) 165
Maximum width of specimen (mm) 130 (distance from the center line of the indenter to the wall)
Data output (optional) Built-in printer, test data can also be output to U disk via USB for storage and analysis
voltage AC220V/50HZ
Overall size (mm) 585×200×630
Weight (kg) 42



HV10 Digital Vickers Hardness Tester 10kgf Automatic Rotation 0


Standard configuration

Host computer 1
weight 3
Large and medium "V" test benches 1each
Horizontal adjustment screw 4
Power cable 1
10X digital microscope eyepiece 1
Vickers hardness block 2
Spare fuse 2A 2
Product Certificate 1
Instruction Manual 1

Remarks: Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate. Optional internal printer, one-click printing of measurement data.
