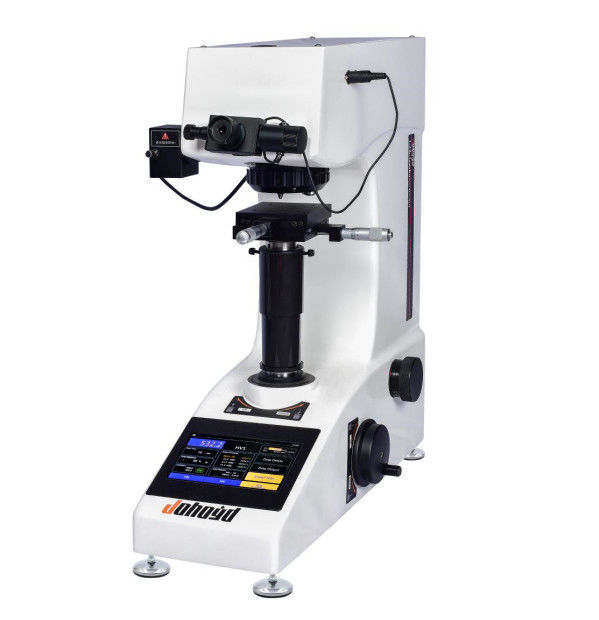

0.3kgf HV0.3 Digital Vickers Hardness Tester Touch Screen

0.3kgf HV0.3 Digital Vickers Hardness Tester Touch Screen

0.3kgf HV0.3 Digital Vickers Hardness Tester Touch Screen
0.3kgf HV0.3 Digital Vickers Hardness Tester Touch Screen

Large Image :  0.3kgf HV0.3 Digital Vickers Hardness Tester Touch Screen Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate Of Compliance
Model Number: HVST-5
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Detailed Product Description
Vickers Hardness Scale: HV0.3,HV0.5,HV1.0,HV2.0,HV3.0,HV5.0 Digital Eyepiece: 10X Digital Display Micrometer Eyepiece
Hardness Value Display: 7 Inch Touch Screen Tower Rotation: Manual Turret
High Light:

HV0.3 Digital Vickers Hardness Tester

,

0.3kgf Digital Vickers Hardness Tester

,

HVST-5 Touch Screen vickers hardness tester

Touch Screen Digital Display Manual Rotary Ta Vickers Hardness Tester (HVST-5)

This digital display Vickers hardness tester is a new generation of multifunctional touch screen Vickers hardness tester newly developed by our company. The hardness tester is novel in shape, has good reliability, operability and repeatability, and is ideal for testing microhardness. product. The machine uses C language programming, high-magnification optical measurement system and optical dual-channel structure, new technologies such as photoelectric, photocouple sensing, etc., in addition to meeting the basic Vickers hardness test requirements, the upgraded digital micrometer eyepiece can directly Read the measured length to obtain the measured value more quickly and accurately. The upgraded control operating system adopts a 7-inch LCD touch screen, which can provide more measurement data, and the control is more comprehensive and accurate.



Technical Parameters:

parameter nameParameter data
Vickers hardness scaleHV0.3,HV0.5,HV1.0,HV2.0,HV3.0,HV5.0
display

5-digit hardness value, 4-digit diagonal length (D1, D2),

Hold time, number of tests, average, standard deviation, return

Test force(Kgf)0.3,0.5,1.0,2.0,3.0,5.0
Loading controlAutomatic (load/hold/uninstall)
Test force retention time(s)1~99
Optical channelDual light channels (eyepieces and CCD camera channels)
Optical system

Objectives: 10×, 20×(Optional 20X 40X)

Eyepiece Magnification: 10×

Total magnification (μm): 100×, 200×

Measuring range (μm): 400

Resolution (μm): 0.125

Hardness measurement range(5-3000)HV
XY test stand (optional)

Size (mm): 100×100

Travel range (mm): 25×25

Minimum reading (mm): 0.01

Maximum height of specimen (mm)165
Maximum width of specimen (mm)130 (distance from the center line of the indenter to the wall)
Data output (optional)Built-in printer, test data can also be output to U disk via USB for storage and analysis
voltageAC220V/50HZ
Overall size (mm)585×200×630
Weight (kg)42



Main functions and features:



1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;

2. The 7-inch touch screen can display the test method, test force, upper and lower limits of hardness value, measured indentation length, hardness value, test force retention time, measurement times and can enter year, month, date, test results and data processing Wait;

3. The system comes with a calibration function, and each test force can be manually adjusted to input the error calibration instrument;

4. The adjustable range of optical system brightness: 0-100;

5. It can store up to 100 sets of test data, and display the average value and test times data on the main interface;

6. The test force unit can be manually selected for mutual conversion, the conversion unit is: (Kgf, N)

7. The main interface can display 4 conversion scales at the same time, and can switch between national standards, American standards and international standards. A total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK , HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;

8. Both objective lenses can directly measure the hardness,

9. With diagonal length memory function, the diagonal length will be automatically memorized after shutting down, and it will be measured directly after starting up, no need to reset it twice.

10. The measuring scale can be converted into HK Knoop hardness;

11. Test data can be directly exported via USB

12. The upper and lower limit measurement range can be set and displayed on the main measurement interface

13. The operating system can be converted between Chinese and English;

14. Optional built-in printer, test data can also be output to U disk via USB for storage and analysis;

15. The HVST-5 model is realistic: the measured length can directly confirm the hardness value;

16. The cast aluminum shell has a stable and non-deformed structure in one-time molding, and the pure white car paint is of high grade and has strong scratch resistance. It is still bright as new after years of use;

17. Our company has the ability to develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life



Main application scope:



1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;

3, glass, wafers, ceramic materials;








0.3kgf HV0.3 Digital Vickers Hardness Tester Touch Screen 0



Standard configuration

Host computer1
weight3
Cross measurement platform1
Flat clamping table1
Horizontal adjustment screw4
Power cable1
10X digital microscope eyepiece1
Vickers hardness block2
Spare fuse 2A2
Product Certificate1
Instruction Manual1

Remarks: Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate. Optional internal printer, one-click printing of measurement data.
