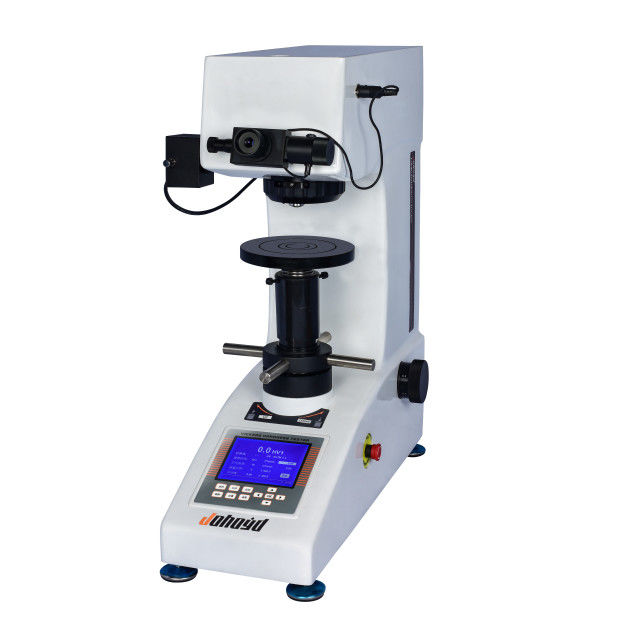

HVS-50Z Digital Hardness Testing Machine HV50 50Kgf

HVS-50Z Digital Hardness Testing Machine HV50 50Kgf

HVS-50Z Digital Hardness Testing Machine HV50 50Kgf
HVS-50Z Digital Hardness Testing Machine HV50 50Kgf

Large Image :  HVS-50Z Digital Hardness Testing Machine HV50 50Kgf Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Certification: Certificate Of Compliance
Model Number: HVS-50Z
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Detailed Product Description
Vickers Hardness Scale: HV1, ,HV5,HV10,HV20,HV30,HV50 Digital Eyepiece: 10X Digital Display Micrometer Eyepiece
Hardness Value Display: Large LCD Screen Tower Rotation: Automatic Rotation
High Light:

HV50 HVS-50Z digital hardness testing machine


HV50 digital hardness testing machine


50Kgf micro vickers

Digital Display Automatic Turret Type Large Display Vickers Hardness Tester (HVS-50Z)


The digital turret-type Vickers hardness tester can meet the basic Vickers hardness test requirements. The upgraded digital micrometer eyepiece can directly read the measurement length, so that the measurement value can be obtained more quickly and accurately. The tower can automatically switch the eyepiece and indenter to avoid artificial errors and damage the instrument, and also greatly improve the efficiency.


Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.

2. Industrial display LCD large-screen display can display test methods, test force, measurement of indentation length, hardness value, test force retention time, number of measurements and type in year, month, date, test results and data processing;

3, Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new;

4. Our company has its own R&D, production and processing capabilities. Our machines provide parts replacement and maintenance upgrade services for life.

5. HVS-50Zmodel can directly confirm the hardness value by measuring the actual length;

6, HVS-50Z models can be realized: observation - test - measurement of the position switch by the automatic turret to complete;

7, Optional LCD large screen; LCD large-screen display to facilitate observation, test conditions, the test process is straightforward;

8,optional internal printer; test results and test data directly print;


Main application scope:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;

3, glass, wafers, ceramic materials;


Technical Parameters:

parameter name Parameter data
Vickers hardness scale HV1, ,HV5,HV10,HV20,HV30,HV50

5-digit hardness value, 4-digit diagonal length (D1, D2),

Hold time, number of tests, average, standard deviation, return

Test force(Kgf)



Loading control Automatic (load/hold/uninstall)
Test force retention time(s) 1~99
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system

Objectives: 10×, 20×

Eyepiece Magnification: 10×(can be changed to 15X)

Total magnification (μm): 100×, 200×(can be changed to 150X,300X)

Measuring range (μm): 400

Resolution (μm): 0.125

Hardness measurement range (5-3000)HV
XY test stand (optional)

Size (mm): 100×100

Travel range (mm): 25×25

Minimum reading (mm): 0.01

Maximum height of specimen (mm) 165
Maximum width of specimen (mm) 130 (distance from the center line of the indenter to the wall)
Data output Reserve built-in mini printer interface, (RS232 serial interface) optional installation
voltage AC220V/50HZ
Overall size (mm) 585×200×630
Weight (kg) 42





HVS-50Z Digital Hardness Testing Machine HV50 50Kgf 0


Standard configuration:

Host computer 1
weight 3
Cross measurement platform 1
Flat clamping table 1
Horizontal adjustment screw 4
Power cable 1
10X digital microscope eyepiece 1
Vickers hardness block 2
Spare fuse 2A 2
Product Certificate 1
Instruction Manual 1

Remarks: Optional built-in printer, measurement data, a key print, can also upload the computer. Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.
