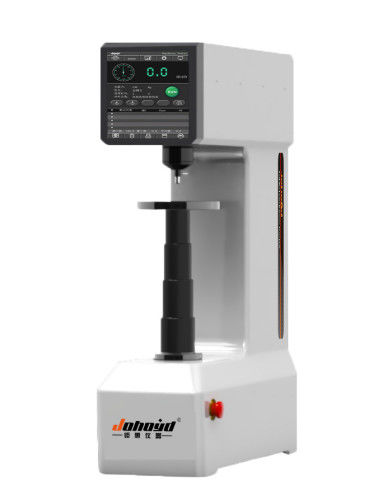

HRST-150Z 150kgf Rockwell Hardness Tester Fully Automatic
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Hardness Value Display: | Touch Screen | Automatic Completion: | Apply Pressure, Hold Pressure, Unload Pressure |
|---|---|---|---|
| Test Force: | 60kgf、100kgf、150kgf | ||
| High Light: | 150kgf Rockwell Hardness Tester,HRST-150Z Rockwell Hardness Tester,Fully Automatic rockwell superficial hardness |
||
Fully automatic Rockwell hardness tester / -Automatic Rockwell Hardness Tester
The full-auto Rockwell hardness tester series is a new generation of high-tech and intelligent products. The shell adopts integrated casting, the surface of the car paint treatment process, the shape is novel, has good reliability, operability and repeatability, and has complete functions, one-key operation, Fully automatic measurement, clear and intuitive display. With automatic loading and unloading test force, hardness test of the whole series of Rockwell scales can be carried out. The hardness tester can be equipped with XY automatic moving platform, automatic programming, automatic dotting, suitable for end quenching test; optional PC computer, through multiple computers to achieve control and measurement of the hardness tester, and can perform statistical analysis on the data, and issue Test report, etc. The test report can also be customized according to user requirements.
Function
| Automatic Rockwell Hardness Tester | |
| model | HRST-150Z |
| Support 15 kinds of Rockwell measurement scales |
Yes |
| Support fully automatic XY platform (optional) |
Yes |
| Support PC software to control the machine (optional) |
Yes |
| Automatically switch loading test force |
Yes |
| One-click test |
Yes |
| Support wireless Bluetooth printer (optional) |
Yes |
| Large-capacity data storage |
Yes |
| Chinese and English conversion |
Yes |
Product configuration:
| project | Parameter data |
| parameter name | Automatic Rockwell Hardness Tester |
| Initial test force | 10kgf |
| Total test force | 60kgf,100kgf,150kgf |
| Measuring standard ruler | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV |
| Unit conversion | Brandt, Rockwell, Victorinox |
| Conversion standard | ASTM,ISO,GBT |

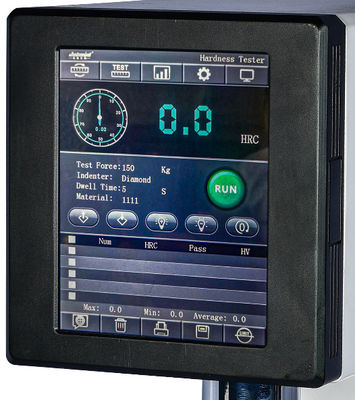

| Hardness display | 8-inch color touch screen |
| Display accuracy (HR) | 0.1 |
| Hold time | 3-60SCan be set |
| Load control | Automatic |
| Lifting system control | Automatic |
| Hardness value calibration | Yes |
| Arc correction compensation |
Yes |
| Test force compensation |
Yes |
| Qualified judgment |
Yes |
| Statistics | Automatic calculation of maximum, minimum, average, maximum error, test times, etc. |
| Data output | Printer, communication interface, PC |
| Maximum height of test piece (mm) | 300 |
| Distance from indenter to machine (mm) | 170 |
| Weight (Kg) | 100 |
