JH-240 Handheld Surface Roughness Tester Marble 400x250x60mm

JH-240 Handheld Surface Roughness Tester Marble 400x250x60mm

JH-240 Handheld Surface Roughness Tester Marble 400x250x60mm
JH-240 Handheld Surface Roughness Tester Marble 400x250x60mm JH-240 Handheld Surface Roughness Tester Marble 400x250x60mm JH-240 Handheld Surface Roughness Tester Marble 400x250x60mm

Large Image :  JH-240 Handheld Surface Roughness Tester Marble 400x250x60mm Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Model Number: JH-240
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Ask the price privately
Packaging Details: Carton packaging
Delivery Time: 1-3work days
Payment Terms: T/T
Detailed Product Description
Measuring Platform Material: Marble Lifting Height: 30mm
Platform Size: 400*250*60 Flatness Of Platform: Class 00(platformtolerance Value 3μm)
High Light:

JH-240 Surface Roughness Tester

,

JH-240 Marble Surface Roughness Tester

,

JH-240 400mm surface roughness machine

Handheld surface roughness meter measuring platform column lifting system roughness test bench (marble) JH-240

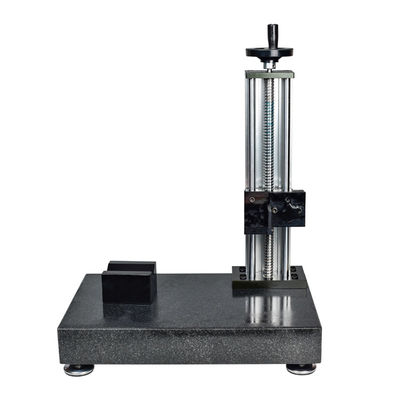

Roughness test platform (marble)



JH-240 Handheld Surface Roughness Tester Marble 400x250x60mm 0

1 . Overview

      the roughness meter platform is one of the main accessories of the portable roughness measuring instrument. It is suitable for various domestic hand-held roughness meters. It provides a high-precision measuring platform and a column lifting system for it. The instrument can be adjusted easily, and its effect will be greatly improved. Reduce the operating difficulty of the instrument, especially when measuring high-precision parts, the effect will be more obvious. This product is also suitable for users who use roughness measuring instruments from other manufacturers (including foreign manufacturers), but a special connection part needs to be customized. Of course, special users for other purposes are not excluded. For special sensors, this set of accessories must be used to make complex and precise adjustments.

Features: ·The column lifting return is very small ·The column lifting is light and flexible ·The positioning accuracy is accurate and reliable



2. Connecting board size

              JH-240 Handheld Surface Roughness Tester Marble 400x250x60mm 1

3.Maintenance

1). Frequent cleaning and rust prevention;

2). Don't forcefully move the carriage sideways;

3). When moving, do not move the column directly, but move the platform to prevent the column from loosening and positioning errors.



4. Technical parameters

1). Lifting height: 280 ± 3 mm;

2). Return error: not more than 1/6 turn of the handwheel;

3). Measurement platform size: 400 mm×250 mm×60 mm.



5. Accessories

1). 3 Phillips screwdriver

2). M6 five-star bakelite screws

3). Screws; hexagon socket screw M4*8, cross screw M3*12, cross screw M3*18,Round head hexagon socket M6

4). Allen wrench; M3, M4, M5, M6

5). Metal V-shaped block
