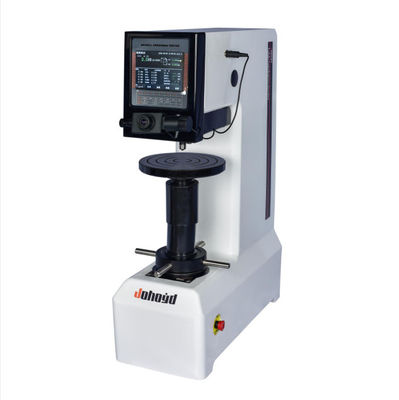

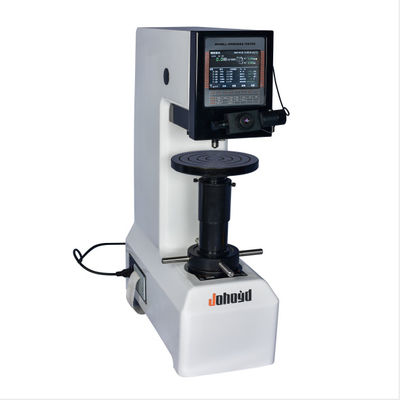

HBST-3000 Digital Brinell Hardness Tester Rockwell 125kgf 250kgf

HBST-3000 Digital Brinell Hardness Tester Rockwell 125kgf 250kgf

HBST-3000 Digital Brinell Hardness Tester Rockwell 125kgf 250kgf
HBST-3000 Digital Brinell Hardness Tester Rockwell 125kgf 250kgf HBST-3000 Digital Brinell Hardness Tester Rockwell 125kgf 250kgf HBST-3000 Digital Brinell Hardness Tester Rockwell 125kgf 250kgf

Large Image :  HBST-3000 Digital Brinell Hardness Tester Rockwell 125kgf 250kgf Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Johoyd
Model Number: HBST-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Ask the price privately
Packaging Details: Wooden packing
Delivery Time: 3-8 work days
Payment Terms: T/T
Detailed Product Description
Test Force: Ten-level Test Force Data Output: Built-in Printer, Hyper Terminal.
Hardness Reading: Automatic Calculation Language Switch: Chinese And English
High Light:

HBST-3000 Digital Brinell Hardness Tester


125kgf Digital Brinell Hardness Tester


250kgf digital rockwell hardness tester

Digital Display Touch Screen Brinell Hardness Tester HBST-3000

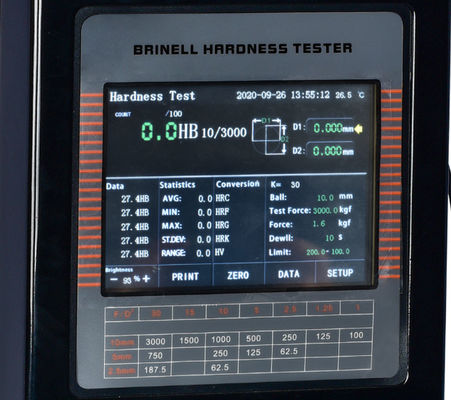

  HBST-3000 touch screen digital display Brinell hardness tester, the software system adopts computer intelligent programming, uses photoelectric sensor technology, through independent selection of test conditions, the test method, upper and lower limit range, and pressure measurement can be displayed on the 5.6-inch touch multifunctional display Trace length, hardness value, conversion value, test force, retention time, number of measurements, and can enter year, month, date, test results and data processing, etc., and can output measurement data through a built-in printer or connect to a computer through a data interface net. The optical system adopts high-magnification LED optical measurement, the image clarity is high, the brightness is adjustable, and the long-term operation is not suitable for fatigue. The hardware system adopts advanced electronic sensor loading technology. Through the closed-loop control system, the CPU controls the sensor to collect signals. The stepper motor automatically loads and unloads the test force, and can automatically compensate the test force to ensure more accurate force values and better indications. stability. At the same time, it is equipped with an emergency stop device, which meets the EU CE safety standards. With humanized operability, more reliable stability and safety.


Main functions and features:

1. This machine has the characteristics of high precision, high repeatability and stability, simple operation, convenient and practical, and high cost performance;

2. Possesses level 10 test capability, and can test a wider range;

3. Equipped with digital display micrometer eyepiece and accurate data calculation system, the hardness value can be directly displayed with just one tap;

4. The system comes with a calibration function, which can manually adjust the input calibration instrument, and can also calibrate the eyepiece magnification.

5. Adjustable range of optical system brightness: 0-100

6. It can store up to 100 sets of test data

7. The operating system can be converted between Chinese and English

8. The main interface can display 5 conversion rulers at the same time

9. Equipped with a built-in printer to output the measurement data or connect to the computer to transmit the measurement data of the host to the computer for editing and saving;

10. Equipped with high-performance stepper motor to automatically load and unload the test force, the noise generated during the test is smaller

11. Using photoelectric sensor technology and microcomputer control system, it can automatically compensate, and the test results are accurate and stable;

12. Automatically enter the indentation diameter and directly display the hardness value, which can realize dual display of any hardness unit, avoiding the cumbersome check-up table;

13. Self-contained design of high-magnification LED optical measurement, high image clarity, adjustable brightness, long-term operation is not suitable for fatigue;

14. The shell is cast at one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;

15. The surface is treated with the car paint process, which has strong scratching ability and is still bright as new after years of use;


Main purpose and scope of use:

1. It is suitable for the hardness tester test of metal materials with large grains, which can reflect the comprehensive performance of the material;

2. Cast iron, steel, non-ferrous metals, especially for softer metals, such as pure aluminum, lead, tin, etc.

3. It can be used to measure the hardness of some non-metallic materials such as hard plastics, bakelite, etc.













technical parameter:


Product number HBST-3000
Brinell ruler HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100, HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Test force 62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N)
Load control Automatic (loading/loading/unloading)
Maximum height of the test piece 220mm
Indenter-outer wall distance 135mm
Indenter-upper wall distance 55mm(The head to the upper wall can be increased by customizing the indenter)
Minimum unit of measure 0.125um
Time of protection 0~60s
Hardness test range 3.18~653HBW
Total magnification 20X
Executive standard EN ISO 6506, , ASTM E-10-08, GB/T231.2,JJG150 -2005
Hardness reading Automatic calculation
Data output Built-in printer, HyperTerminal.
Power supply AC220+5%,50~60Hz
Dimensions(mm) 520*210*745mm
Weight of host About 125kg

HBST-3000 Digital Brinell Hardness Tester Rockwell 125kgf 250kgf 0


Name Quantity Name Quantity
Digital display microscope 1 2.5, 5, 10mm diameter carbide ball indenter 1
Standard hardness block 3 Large and V-type test bench 1
power cable 1 Product certificate, product instruction manual 1
fuse 2 printer paper 1
Level 1 Dust cover 1
