Product Details:
Payment & Shipping Terms:
|
| Objective Lens Indenter Conversion: | Automatic | Display Screen: | PC Display, Can Be Directly Observed On The Display To Measure The Indentation |
|---|---|---|---|
| Lifting System: | Side Rocker Screw | ||
| Highlight: | HV0.01 Micro Vickers Hardness Testing Machine,HV0.025 Micro Vickers Hardness Testing Machine,25kgf hardness checking machine |
||

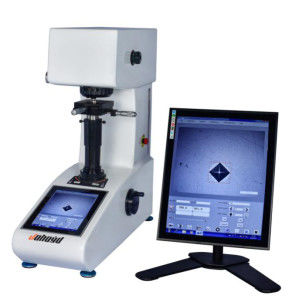

Integrated Intelligent Visual Hardness Tester PCHVT-1000Z For Automatic Measurement On PC
1. industrial tablet integration, USB expansion
2.Optional digital display cross platform, accurate positioning and measurement
3. indentation visual display, hardness automatic measurement
4. automatically generate WORD reports to meet the needs of test personnel
Integrated intelligent visual hardness meter, just operate a touch tablet computer, easy to handle the measurement! And all the parameters required for testing can be selected, modified and analyzed directly on the computer. PC end is connected with the hardness meter by communication protocol to realize the control of the mechanical motion part of the hardness meter, which can be realized: automatic multi-function tower position, automatic identification of objective lens and pressure head, automatic loading, automatic load keeping, automatic unloading, light brightness. Through the link built-in CCD measurement acquisition system, can display the clear indentation image dynamic on the PC in real time, but also can directly lock the indentation to measure the hardness value automatically, save the test data automatically, generate the report. Operation
Integrated intelligent visual hardness meter, with tablet computer as the platform, through the Internet can expand more application functions, but also external display, printer and other equipment.
The side rocking lifting wire rod adopts worm gear and worm structure, the transmission is stable and has no empty range.
General specifications:
| project | Parameter data |
| Parameter name | PCHVT-1000Z |
| scale of hardness | HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1 |
|
Force (Kgf)
|
10,25,50,100,200,300,500,1000 |
| Range of hardness measurements | (5-3000)HV |
| Unit conversion: | Brinell, Rockwell, Nussell (and switchable: ASTM,ISO,JJG standard) |
| hardness value | PC automatic hardness measurement |
| Eligibility criteria | Can set up qualified range, machine automatically remind whether qualified |
| Language switching | Chinese and English systems switching at any time |
| error correction | Calibration of hardness at all times |
| Scale conversion | HK( Nouri) |
| Load control | Automatic loading, automatic holding, automatic unloading |

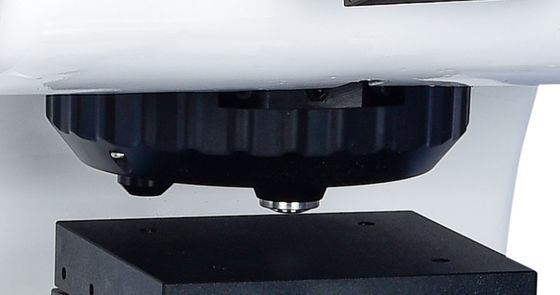

| optical channel | automatic switchover |
| optical system | Support for dual channels |
| Force retention time (s) | 5～60 |
| Test Force Selection | External force selector knob, test force automatically displayed on computer |
| magnification factor | 10×,40× |
| Optical system |
Total magnification (μm):100×(observation),400×(measurement); range (μm):200; |
| Optical system resolution(μm) | 0.0625 |
| XY test |

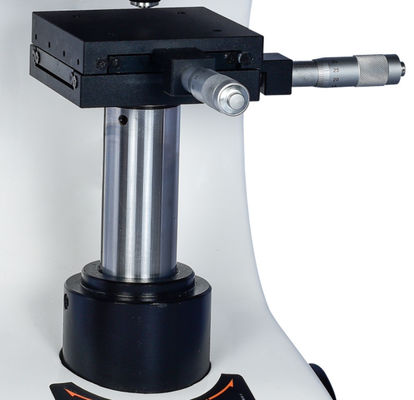

Size (mm):100×100 travel range (mm):25×25 minimum reading (mm):0.01 |
| Maximum height of specimen(mm) | 150 |
| Maximum width of specimen(mm) | 120 |
| supply voltage | AC220V/50HZ |
| Weight(kg) | 60 |
| Exterior dimensions |
620mmX230mmX630mm |
Standard configuration:
| Microscopic Vickers head | 1 | Horizontal adjustment screws | 4 |
| XY Cross Desk | 1 | instructions | 1 |
| standard block of hardness HV0.2(400-600) | 1 | Weight bars | 1 |
| fuse | 2 | Filament holder table | 1 |
| 10X objective lens | 1 | gradienter | 1 |
| Sheet holder table | 1 | dust guard | 1 |
| standard block of hardness HV0.2(700-800) | 1 | weight | 6 |
| Work certificate;product qualification certificate | 1 | bolt driver | 2 |
| 40X objective lens | 1 | power line | 1 |
| Flat mouth clamping table | 1 | Spare halogen bulb | 1 |
